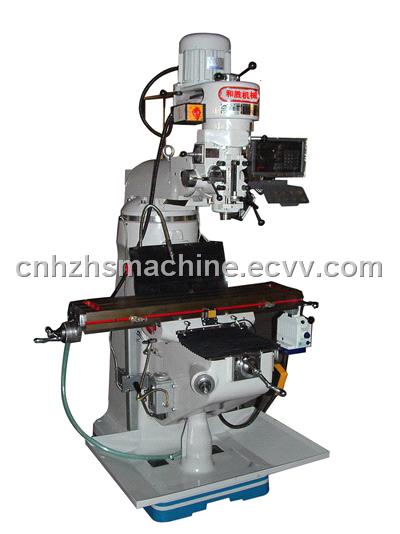

Vertical Turret Milling Machine

Detailed Product Description

Turret Milling Machine

Model no.: HS-2SS

Drilling Capacity in Cast Iron: OD-18mm

Drilling Capacity in Steel: OD-15mm

Capacity face milling: OD-75/2.5mm

Capacity end milling: OD-20/6mm

Spindle Taper: R8/NT-30

Diameter of Quill: 85mm

Number of Spindle Speeds: 16

Range of Spindle Speeds(50HZ): 65-4,550rpm

Range of Spindle Speeds(60HZ): 80-5,440rpm

Power Down Feed per Revolutions of Spindle: 0.04/0.08/0.15(mm/rev)

Number of Power Feeds: 3

Spindle Travel: 127mm

Head Movement(L to R): 90 degrees

Head Tilt: 45 degrees

Max. Distance Spindle to Table: 50-460mm

Max. Distance Spindle to Column: 533mm

Min. Distance Spindle to Column: 213mm

Collet Capacity: 3-16mm

Size of Table: 230*1070mm

Longitudinal Table Travel/X-Axis: 730mm

Cross Table Travel/Y-Axis: 320mm

Number of T-Slots: 3

T-Slot Size: 16mm

T-Slot Centers: 64mm

Max. Weight of Workpiece: 330kg

Travel of Knee: 380mm

Overarm Travel: 250mm

Overall Dimensions (W*D*H): 1670*1600*2180mm

Horse Power for Main Motor: 2.2kw(3HP)

Shipping Weight(approx.): 1100kg
