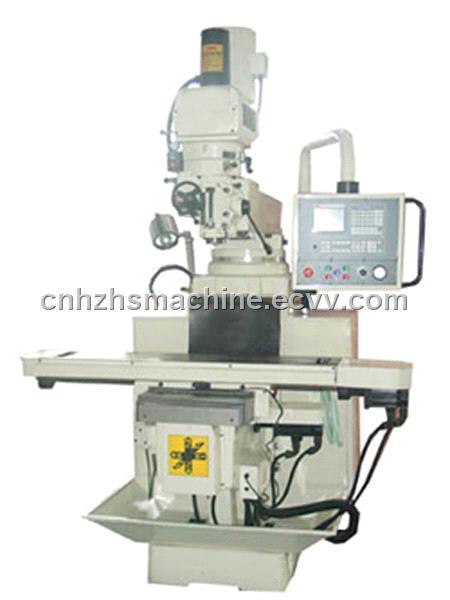

CNC Vertical Milling Machine

Detailed Product Description

CNC Milling Machine

Item no.: HS-5VSS

Specification:

Range of spindle: 50-3500rpm

Milling head type: Variable

Spindle Taper: NT-40

Travel of spindle: 127mm

Motor Spec.: 3.75kw

Distance from spindle center to column: 680mm

Distance from spindle nose to table surface: 120-480mm

Table size(L*W): 1370*305mm

Load on the table: 400kgs

T-slot size and no.: 16mm/3 no.

Longitudinal travel(X axis): 820mm

Cross travel(Y axis): 410mm

Knee travel(Z axis): 360mm

Package size: 2700×2230×2360mm

N.W: 1720kgs

Spec. of CNC Controller System

Controller Type: KND 100M

NO. of control axis/connecting: 3/3.

Control measurement: 0.001mm

Repeatability: 0.01mm

Positioning: 0.01mm

Rapid movement: 10000mm/min

Rate of feeding: 0%-150%
