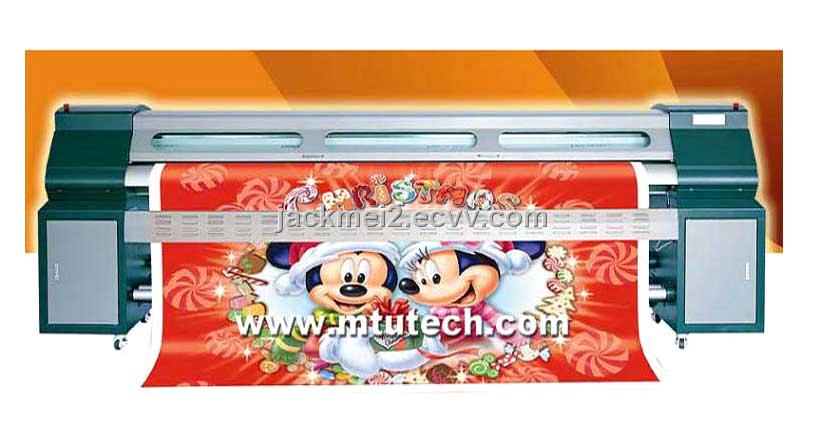

solvent printer (seiko)

Detailed Product Description

We have three kind of Seiko printer. They are heavy-duty , light-duty and simple type. The following is heavy-duty.

3.2m Series Solvent Printer:

Model		SK3208H	SK3206H	SK3204H
Print Head		Drop on demand Piezo Head(SPT510-35PL) 720dpi
Number of Print Head		8 Heads(Double 4 Color)	6 Heads (6 Color)	4 Heads(4 Color)
Maximum Print Width		3,200mm(125.98”)
Print Speed*		101m^2/hr 1Pass	49m2/hr 3Pass	49m^2/hr 3Pass
		76 m^2/hr 2Pass	39m2/hr 4Pass	39m^2/hr 4Pass
		51m^2/hr 3Pass	27m2/hr 6Pass	27m^2/hr 6Pass
		26m^2/hr 4Pass	14m2/hr 8Pass	14m^2/hr 8Pass
Media	Max. width	3,300mm(129.92')
	Max. Weight	90kg
	Type	Frontlit,Backlit,Vinyl ,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper…
	Thickness	4mm(Max.)
Heating System		Pre/Post Heater, Cooling Fan System
Auto Media Feeding&Take-up System		Equipped
Ink	Type	Solvent, Eco-Solvent
	Capacity	1L or 5L per Color Main Tank
Auto Cleaning System		Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System
Print Interface		Optical Fiber
Power Specification		AC 220V/230V 50Hz/60Hz 2000W
Operational Environment		Temperature：20°C-28°C Humidity：40%-60%
Compatible RIP Software		Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop
Dimension&Weight	Machine	L4,440mm X W770mm X H1,280mm 430KG
	Packing	L4,950mm X W920mm X H1,540mm 710KG

2.5m Series Solvent Printer:

Model		SK2506H	SK2504H
Print Head		Drop on demand Piezo Head(SPT510-35PL) 720dpi
Number of Print Head		6 Heads( 6 Color)	4 Heads(4 Color)
Maximum Print Width		2,500mm(98.42”)
Print Speed		44m2/hr 3Pass	44m2/hr 3Pass
		34m2/hr 4Pass	34m2/hr 4Pass
		25m2/hr 6Pass	25m2/hr 6Pass
		13m2/hr 8Pass	13m2/hr 8Pass
Media	Max. width	2,600mm(102.36')
	Max. Weight	90kg
	Type	Frontlit,Backlit,Vinyl ,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper…
	Thickness	4mm(Max.)
Heating System		Pre/Post Heater, Cooling Fan System
Auto Media Feeding&Take-up System		Equipped
Ink	Type	Solvent, Eco-Solvent
	Capacity	1L or 5L per Color Main Tank
Auto Cleaning System		Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System
Print Interface		Optical Fiber

1.8m Series Solvent Printer:

Model		SK1806H	SK1804H
Print Head		Drop on demand Piezo Head(SPT510-35PL) 720dpi
Number of Print Head		6 Heads( 6 Color)	4 Heads(4 Color)
Maximum Print Width		1,800mm(98.42”)
Print Speed		40m2/hr 3Pass	40m2/hr 3Pass
		31m2/hr 4Pass	31m2/hr 4Pass
		21m2/hr 6Pass	21m2/hr 6Pass
		12m2/hr 8Pass	12m2/hr 8Pass
Media	Max. width	1,900mm(74.80”)
	Max. Weight	90kg
	Type	Frontlit,Backlit,Vinyl ,Polyester,Window Film,Mesh,Leather,Backlit Film,Blue Back Paper…
	Thickness	4mm(Max.)
Heating System		Pre/Post Heater, Cooling Fan System
Auto Media Feeding&Take-up System		Equipped
Ink	Type	Solvent, Eco-Solvent
	Capacity	1L or 5L per Color Main Tank
Auto Cleaning System		Positive Pressure Cleaning,Anti-Clogging Flash Function&Capping System
Print Interface		Optical Fiber
Power Specification		AC 220V/230V 50Hz/60Hz 2000W
Operational Environment		Temperature：20°C-28°C Humidity：40%-60%
Compatible RIP Software		Photoprint,UltraPrint,Topaz,Wasatch,Caldera,Maitop
Dimension&Weight	Machine	L3,040mm X W770mm X H1,280mm 260KG
	Packing	L3,190mm X W920mm X H1,540mm 540KG
