Baby Diaper Machine

Detailed Product Description

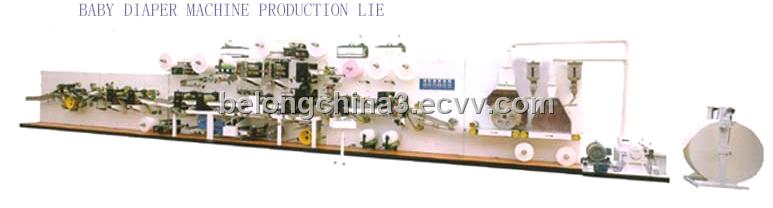

Baby Diaper Machine

Baby Paper Machine

Ⅰ.STRUCTURE AND CHARACTER

1. The machine can produce four sizes (S.M.L.XL) baby products by changing cutting tools and gear box.

2. High speed teeth-like crusher can take treated and untread pulp.

3. Adopt PLC control system.

4. Safety protective door.

5. Semi-automatic splicing material without stopping the machine, so the working speed is guaranteed

6. Automatically detect and reject defective products and trim remove.

7. Automatically stop the machine when material is broken or used out.

8. Human machine interface is controlled by touch screen.

9. Most electric components are famous international brand.

II. TECHNICAL PARAMETER

Power supply: 380V 50HZ

Installation capacity: 90KW

Designed production speed: 350 pcs/min

Stable production speed: 250-280 pcs/min

Product dimension:

a). XL (510-520) ×330mm,

b). L (470-480) ×320mm,

c). M (430-440) ×320mm,

d). S (380-390) ×280mm (customized)

Waster Percent: ≤2 %( excluding caused by glue applicators failure)
Machine dimension: 20×1.5×2.8 m (L×W×H)

Weight: 25T

FOB Price:	USD0-1000000China
Other Price Terms:	TT,L/C
