Guangzhou Suponway Electronics Co.,Ltd

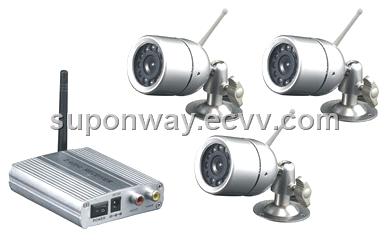

Wireless CCTV Camera
Features:* Day and Night 2.4G Wireless Camera* Can support 4 cameras max. (quantity optional);* Alloyed shell, weather proof function for outdoor use;* 26 infrared LEDs with 20 meters night vision range;* Built-in microphone for audio monitoring;* Min. 100 meters transmission distance without block;* Automatic cycle surveillance, selectable cycle channel and time.
Camera:* Pixels : 512×582(PAL) ; 512×492(NTSC)* Horizontal Resolution: 420 TV Lines* Lens Mount:Lens:3.6, 6mm (Recommend)* Minimum Illumination: 0 Lux IR ON* Transmission Frequency: 4 Channel 2,400MHz~2,483MHz* Modulation Type: FM* Power Supply: DC 12V 300mA* Unobstructed Effective Range : 100m (Min)* Night Vision Range: 20m* Weight : 300 g
Receiver:* Power Supply: 12V200mA* Receiving Frequency: 4 Channel 2,400MHz~2,483MHz* Demodulation Type: FM* Frequency Stabilization: +/- 100 KHz* Local Leakage at RF Input Terminal: <=-55 dBm* Receiving Sensitivity: -85 dBm* Video Output Signal Impedance: 75 ohm* Video Output Signal Level: 1.0 V +/- 0.15 Vpp* Left Subcarrier Frequency: 6.5 MHz* Weight : 200 g
