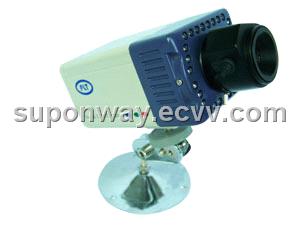

CCTV Camera
Feature Details﹡ Supports Auto-Iris Lens:Both Video-Drive and Dc-Drive Lens Selectable﹡ 420TVL , IR ON 0LUX﹡ Taiwan LED , LED will work in 10LUX , will be off in 30LUX﹡ Built-in Sony/Sharp Color CCD﹡ Aluminum Alloy housing﹡ Back light compensation(B/C)
Model
SW-C3001
SW-C3002
SW-C3003
Image sensor
1/3″ SONY CCD
1/3″ SHARP CCD
1/4″ SHARP CCD
Effective pixels
PAL：512（level）×582（vertical） NTSC：512（level）×492（vertical）
Signai system
PAL/NTSC
Minimum illumination
Horizontal resolution
420Tv lines
S/N Ratio
More than 48db（AGC OFF）
Shutter Speed
1/50（1/60）——1/100,000sec
Video Output
1.0Vp-p，75Ω
Power consumption
DC 12V
Built-lens
C/CS Mount Lens
IR quantity
20/28 PCS
IR distance
40M
IR state
bottom10lux，CDS Auto Open
