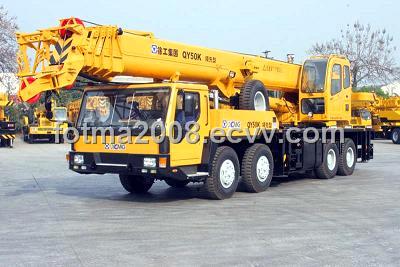

Sell Truck Crane

Detailed Product Description

Main Technical Data in Travel State
Category	Item			Unit	QY60K	QY50B	QY50K	QY40K
Outling Dimensions	Overall length			mm	13500	13270	13100	13050
	Overall width			mm	2800	2750	2750	2750
	Overall height			mm	3510	3300	3350	3430
Weight	Dead weight in travel state			kg	41000	39870	39400	39800
	Axle load	1st,2nd axle		kg	15000	13935	13420	13900
	Axle load	3rd,4th axle		kg	26000	25935	25980	25900
Power	Engine rated output			kw/(r/min)	266/2200　276/2200	247/220 266/2200	266/2200 257/2100	266/2200　247/2200
	Engine rated torque			N.m/(r/min)	1460/1500　1500/1400	1350/1300 1460/1400	1460/1400 1550/1400	1460/1400　1350/1400
	Engine rated travel Speed			r/min	2200		2200	2200
Travel Performance	Max. travel speed			kw/h	75	78	75	75
	Min. turning diameter			m	24	12	24	24
	Min. ground clearance			mm	290	251	285	290
	Approach angle			°	17.5	16	16	16
	Departure angle			°	12	10	11	11
	Braking distance(at 30 km/h)			m	10	10		10
	Max.grade ability			%	40	46	46	46
	Fuel consumption of 100km			L	45	48	42	45
Main Technical Data for Lifting Operation
Category	Item			Unit	QY60K	QY50B	QY50K	QY40K
Lifting performance	Max. total rated lifting capacity			t	60	50	50	40
	Min. rated working radius			m	3	3	3	3
	Turning radius at swing table tail			mm	3550	3800	3482	3482
	Max. load	Base boom		kN.m	2060	1509	1764
	Max. load	Full-extend boom		kN.m	824	631	823.2	720
	Outrigger span	Longitudinal distance		m	5.81	5.45	5.65	5.65
	Outrigger span	Lateral distance		m	6.7	6.6	6.6	6.6
	Lifting height	Base boom		m	11.2	11.27	10.75	10.9
		Full-extend boom		m	42	40.31	40	40.4
		Full-extend boom+Jib		m	58	55.8	55.8	55.1
Working speed	Boom length	Base boom		m	11.5			10.7
		Full-extend boom		m	42			40.1
		Full-extend boom+Jib		m	57			55.1
	Boom elevating	Boom raising		s	60		88	88
	Boom telescoping	Full-extending		s	150	184	180	180
	Max. swing speed			r/min	2	2	2	2
	Outrigger extending and retracting time	Outrigger beam	Full-extending	s	30	40		30
		Outrigger beam	Retracting	s	20	42		20
		Outrigger jack	Full-extending	s	35	40		35
		Outrigger jack	Retracting	s	30	42		30
	Hoisting speed(single rope,4th layer)	Main winch	Full load	m/min	75	70.8	85	85
		Main winch	No load	m/min	130	118	110	110
		Aux. winch	Full load	m/min	98	70.8	85	85
		Aux. winch	No load	m/min	108	118	110	110
