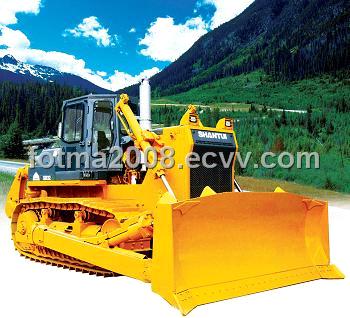

Sell Bulldozer

Detailed Product Description

ENGINE:	SD32
Model	CUMMINS NTA855-C360
Type	Turbochayged, intercooled, in-line, 4-cycle
Number of cylinders-bore x stroke	6-139.7x152.4mm
Piston displacement	14010ml
Flywheel horsepower	235kw(320HP)
Rated Revolution	2000r/min
Max torque	(1440N.m/1400r/min)
Fuel consumption	245g/kw.h(180g/Hp.h)
Start motor	24v, 11kw
Alternator	28v, 35A
Battery	24v(12v x 2)-195AH
Fuel system	PT pump head valve direct injection
Governor	Centrifugal, all speed governor
Cooling system	Forced circulation by centrifugal pump, busher type fan
Air cleaner	Dry, horizontal type with air cleaner
WEIGHT:
Operating weight	37200kg
(with multi-ripper)	40975kg
TRACK SHOE:
Assembled type	single tooth
Pitch	228.6mm
Width	560mm
Tooth height	80mm
Number of track shoes	41(each side)
Track gauge	2140mm
Ground pressure	0.105MPa
WORKING EQUIPMENT AND ATTACHMENT:
Straight-tilt dozer	Hydraulically actuated with servo valve
Blade supporting method	brace type tilt cylinder on right side
Blade Width	4130mm
Blade Height	1590mm
Max.lift above ground	1560mm
Max.drop below ground	560mm
Max.tilt adjustment	1000mm
3-SHANK RIPPER:
Max.digging depth	842mm
Max.lift above ground	883mm
Standard digging angle	45°(variable within range between 35°-63°)
Max.digging depth of Single ripper	1250mm
Max.lift above ground	955mm
TRAVEL SPEED:
Gear	1st	2nd	3rd
Foward(km/h)	0~3.6	0~6.6	0~11.5
Reverse(km/h)	0~4.4	0~7.8	0~13.5
UNDERCARRIAGE SYSTEM:
Suspension	Swing type of sprayed beam,suspended structure of equalizer bar
Number of carrier rollers	2(each side)
Number of track rollers	7(each side)
Number of idler	1(each side)
OVERALL DIMENSION：	6880×4130×3725mm
