Shenzhen YDM Reflector Co.,Ltd.

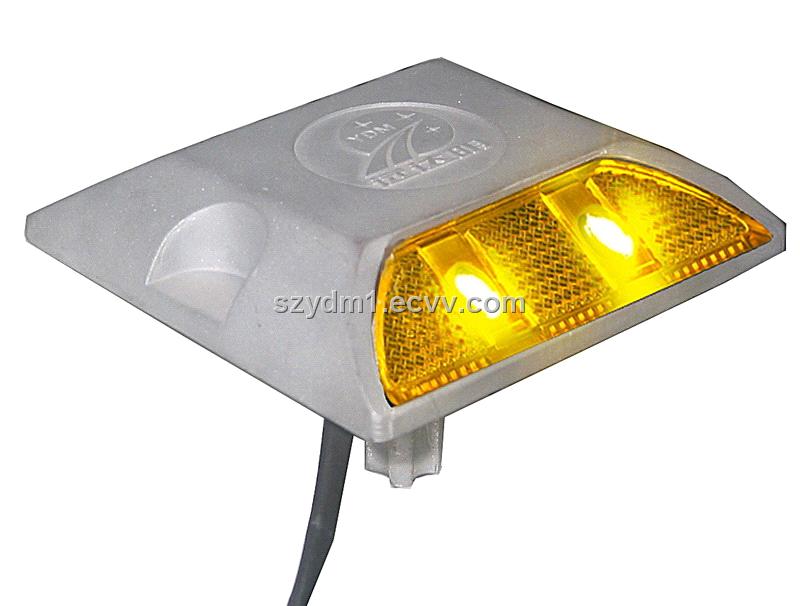

Wired Solar Road Stud, with Both LED and Reflector

Wired Solar Road Stud, with Both LED and Reflector

Detailed Product Description

Key features:

Wired studs can flash at the same time which looks very tidy and pleasing
Battery and circuit are placed into the control box instead of in road stud, in this case, wired studs can resist more pressure
Besides, battery and circuit can be replaced
All those above endue wired stud with long lifespan
Control distance of controller: 500m

Technical features:

Size: 105 x 105 x 21mm with 50mm anchor
Shell: aluminum alloy
Have both solar active lighting and reflective lens
Compression resistance: 16 tons
Waterproof: IP68
Frequency: 1Hz or at customer's request
Colors: white, red, yellow, green and blue
Working temperature: -20 to +70 degree Celsius
Viewing distance: greater than 500m

Control system:

Solar panel: 30W
Solar panel connected by universal wheel which can be at any direction
Power storage: 24V lead-acid battery
72 hours blinking after full charge
Control distance: 500m
Starting luminous intensity: 400 to 500 lux
Lifespan: 3 years
Painted metal board
Connection way: connected with post by back groove
Connecting lead: 1.5³ pipe
Cutting depth: 3 to 4cm under the road surface
Cutting width: 5 to 10mm
Position: edge line
Sealing glue: two-component epoxy glue or asphalt
Waterproof: IP65

Used in tunnel:

Shell: PC
Compression resistance: 10 tons
Water-resistant: IP68
Frequency: 1Hz or at customer's request
Colors: white, red, yellow, green, and blue
Working temperature: -20 to +70 degree Celsius
Viewing distance: greater than 500 meters
Position: wall beyond cable channel
