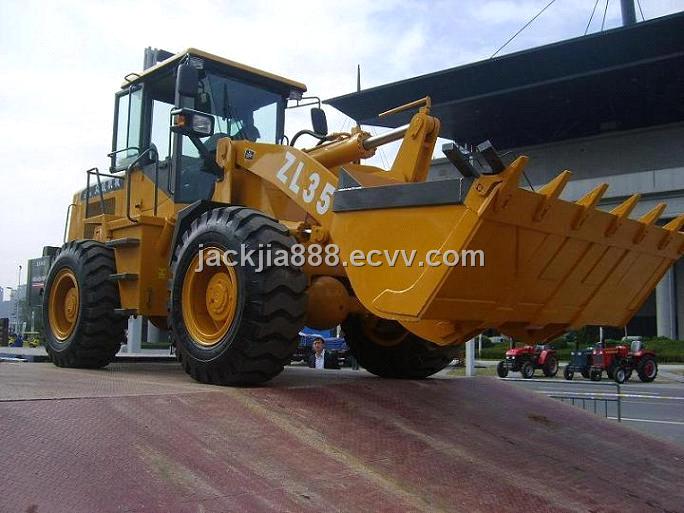

wheel loader ZL35

Detailed Product Description

Product Description

FEATURES:

High-powered engine, large power storage
The new sealed cab with warm-wind equipment is much more comfortable for operating.
Torque-converter and transmission box, the detached structure makes easy maintenance.
Main articulated positions take sealed, lubricated, double dust-proof layers, which owns good durability.
The computer optimization design results in the automatic leveling ability, which can improve the operating efficiency obviously.
The hydraulic oil tank adopting three-level filtration makes system much cleaner and more reliable.
A lengthened, specially used moving arm, whose max dumping height is 3230mm, is suitable for more extensive working environments.

OPTIONALS:
Optional with Cummins engine, Xichai CA6110G5 engine, Steyer engine, YTO LR 6108G engine.
Optional with Luxury Cabin, Pilot Control, A/C, CD etc.

Item	Performance
Rated bucket capacity	1.7cbm
Rated load capacity(kg)	3500kg
Operating weight	9700kg
Max.dump height	3230mm
Max.dump reach	1070mm
Min.ground clearance	410mm
Wheel base	2600mm
Tread	1870mm
Height with bucket at full raise	5050mm
Automatic leveling ability	Yes
Static tilting load at full steering position	58.8KN
Max breakout force	120KN
Max drawing force	90KN
Max grade ability	30 °
Lifting time	5.5s ( full load )
Total cycle time(lifting, dumping, lowering)	9.67s ( full load )
Overall dimensions (l × w × h)mm	7020 × 2420 × 3000
Fuel tank capacity	125L
Model:	ZL35
Standard:	ISO9001
Productivity:	10000
Trademark:	ZCEM
