Sell filling & screw-cap sealing line

Composition:

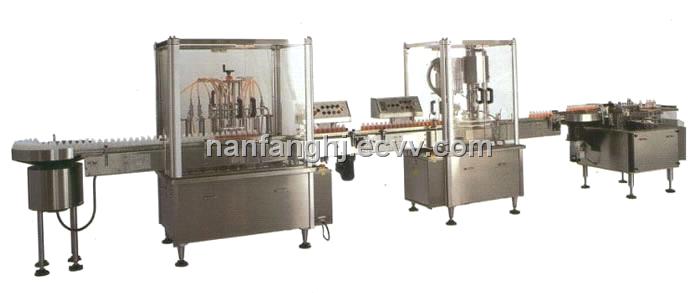

  The system is composed of GS-6B Filling Machine, SGXcAP Screw Machine, Transportation and Auto-control System.

Specification:

1.       Filling Capacity: 25ml~125ml

2.       Filling Speed:60~90bottle/min

3.       Air Pressure:0.8Mpa

4.       Power:1.5kw

5.       Voltage:AC380V

6.       Diameter of Bottle:16mm

7.       Bottle applied:cylinder or rectangular in shape

8.       Cap:regular

9.       Filling material: ***** or bubble

10.   Volume of Pot :100L

11.   Temperature of Filling Material:<400C

12.   Temperature of Wash Water:<600C

13.   Transmission Speed Range:8~20m/min

14.   Recommended Ambient Temp.:100C~300C
