heatpipe solar collector

Detailed Product Description

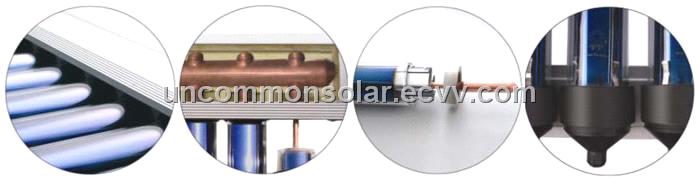

Heat Pipe Solar Collector

Characteristic

1. Water wouldn’t run in the tube,so the heat delivery efficiency wouldn’t be affected

2. It can be set at any angel required

3. The whole system would run normally if any of vacuum tube is broken.

4. The liquid is circulated with high efficiency by pump.

5. It is well designed for the balcony building and sloped styled houses

Specification

1. Manifold : interior: red copper; exterior: aluminum alloy

2. Heat preservation: Rock Wool and Polyurethane

3. Frame: galvanized steel 1.5mm

4. Heat pipe: anti-freezing>-35℃

5. Angle of operation:5-90 degree

6. Tube size and no.: 58*1800mm 47*1500mm;10,20,24,30,36

7. Hail resistance:25mm

8. Coating of vacuum tube:ALN/AIN-SS/CU

FOB Price:

USD240-380ningbo
