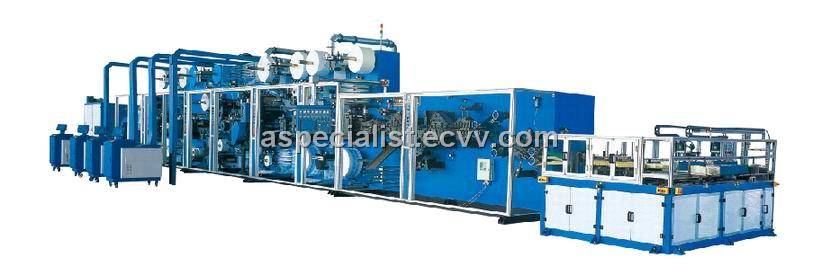

Full-servo Baby Diaper Machine (PX-YKJ-150D)

Detailed Product Description

Function & Character:
1. It can produce four sizes (S, M, L, XL) of products by exchanging cutting tools.
2. The high-speed teech-like crusher can be used to crush the treated and untreated pulp, it adopts insulative cover and safety-protective door.
3. SAP mixed fluffy pulp, servo motor can control supplying amount.
4. Raw materials’ auto splicing and mid-unwinding, servo motor control tension. Adopt eight sets of rectifiers.
5. Frontal tape, side tape and elastic waistline are added on the machine. Leakage barrier is molding on the machine.
6. The whole machine is driven by servo motor and with PLC control, auto reject wasted products, breakdown show on the touching screen.
7. As per customer’s request, equip with two-outlet stacker.
8. The main bearing and conveyer belts are international brands.

Main Technical Parameter:
1. Designed speed: 200m/min (500pcs/min for M size)
2. Stable production speed: 400~450pcs/min
3. Power: 3 phase 145kw (380kv 50Hz)
4. Reject rate: ≤2% (excluding caused by hot melt applicators failure)
5. L×W ×H: 20m×2m×2.9m
FOB Price:USD300000-500000Xiamen
