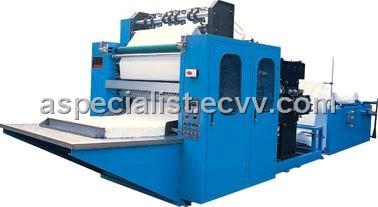

Automatic Box-drawing Face Tissue Machine (PX-CHMJ-200)

Detailed Product Description

Function & Character:

1. Folding and Molding type: V type folding, paper in upper and lower position are jointed and folded with auto counting unit and outputting in stack.

2. Paper is conducted by spiral cutting by section with convenient adjustment in cutting tool.

3. Slitting width can be adjustable while products are in trim.

4. As per customers' request, it can be equipped with embossment unit.

5. It can be equipped with color printing unit or chromatic gluing system.

Main Technical Parameter:

1. Jumbo roll specification: width: 420/840/1260mm, 12-18g/㎡×2ply,roll diameter≤1200mm

2. Products specification: 200/210×210mm(adjustable)

3. Production speed: 1200~4800 sheets/min

4. Machine power: 9kw/16kw/27kw (380V 50Hz)

5. Gas: 0.5~0.8MPa/㎡, 0.5m3/min

FOB Price:

USD10000-30000Xiamen
