HanDan FuYe Hydrulic Machinery Co., LTD

hose crimping machine

Detailed Product Description

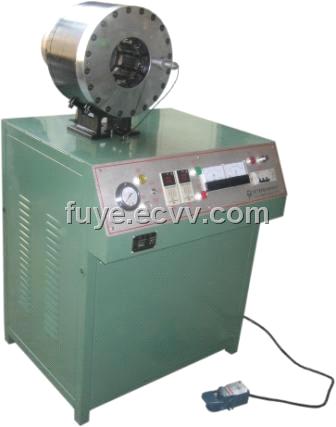

FXSG-300LQ hose crimper machine is our latest products. It adopts double-slopped type and compound cylinder, both of which make it qualified with great crimper force and large opening (30mm). Various hose with elbow or unusual hose can go through it easily. Certainly, it is suitable for oil and coal mine.
technical specifications
crimper range φ6—φ51mm
systematic pressure   31.5Mpa
die size    94×65  94×78 (dovetail)
maximum φ51 IV
weight per  342kg

crimper force   757t

outline size  820×620×1360mm3
