cnc machining center

Detailed Product Description

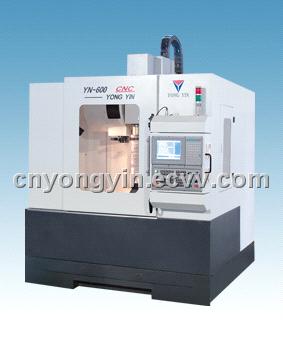

YN600CNC MACHINE CENTER:

Model	YN-600CNC
CNC Control system(Optional)	Taiwan syntec/Fagor/FANUC
(XYZ)Travel	600400400mm
Table Size	700*400mm
(XYZ)Position Accuracy	0.02/300mm
(XYZ)Repearted Accuracy	0.01mm
Table Max Load	500kg
Deformation under (max) load	<0.025mm
Spindle axes to lead railface of Z axis	550mm
"T"slot size(numberwidthdistance between two slots)	318150mm
Spindle taper hole	BT40
Max Spindle speed	8000r/min
Spindle motor power	3.7/5.5kw
Rapid travel speed	12m/min
Cutting feed speed	6m/min
Spindle nose to table	50-450mm
Drive system	Digital AC servo drives
Voltage	380v/50HZ(3-phases)
Machine size	240022002500mm
Optional	Tool sensor/tool changer
Weight	3800kg
* Pictures just for reference, if parameters changed,please forgive us for no inform.

Other Price Terms:

30%in advance ,70%paid before shippment
