Yuyao Numerical Control Machinery Co., Ltd.

cnc engraver

Detailed Product Description

Detailed Product Description

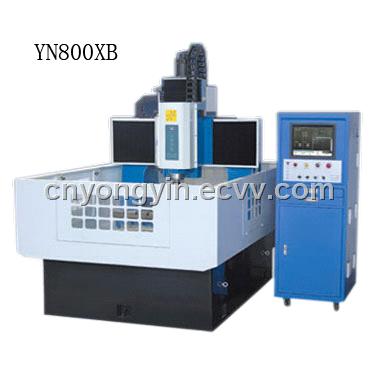

XB800  CNC Machine :

CNC system Tai wan SYNTEC  CNC system
Table size 700*800mm
(XYZ)Travel 700*800*300mm
(Max)load   500kg
Spindle speed  3000-15000rpm
Spindle collet ER32 Supply spring collet Φ3,Φ4 Φ6,Φ8,Φ10
Maximal moving feed 10m/min
Maxmial cutting feed  10m/min
Spindle power 5.5kw
spindle nose to table max distance 400mm
Positional Accuracy 0.02/300mm
Repeat positional Accuracy 0.01mm
Spindle cooling system Water cooled
Lubricate system (20#lube)Automatic lubricate
Tool sensor Japan completely automatic tool sensor
Standard accessories Local area network (LAN)
Drive system Digital AC servo drives
Gross weight(T) 4300kg
Power supply 380V/50HZ
Maxhine Size 2200*1600mm
*Pictures for reference,if parameters changed,forgive us for no information
