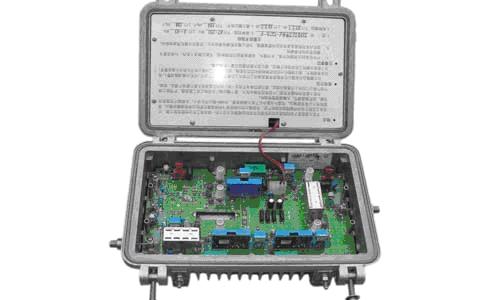

Digital TV Optical Receiver (JXR)

Outline:

JXR series optical receiver is adopted updated cast-aluminum outside technology, and different type optical receiver has different output port number, but the maximum is 4. There is alone power-supply port (AC60V) and photoelectricity module output signal monitoring port. The output level (channel 1 and 2 or 3 and 4) can be modulated separately to output by splitting or distributing way.

Features: (standard)
#Excellent design in circuit, oversea or high quality domestic photoelectricity module and oversea double power output module.
#High efficient electrical source---big working voltage range, anti-surge, protecting when voltage is not enough or over load, less noise
#Updated cast-aluminum outside technology----watertight, against moldy, durable, convenient in fixing and modulating in field
#Numerical tube shows optical input power, output port supply electrical choice with a chip
#Splitting or distributing output easy to system design
