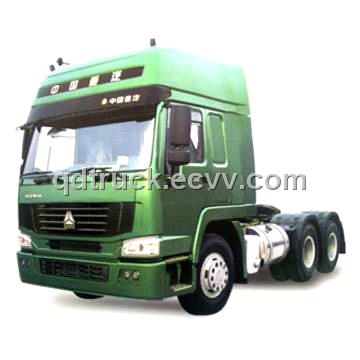

Engine
Make and model………STEYR WD615.69
Type……….Diesel 4-stroke direct injection engine,6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement ……………………9.726 liters
Maximum output….336HP@2200rpm(247KW@2200rpm)
Max . torque……1350NM@1400-1600rpm
Bore………………………………...126mm
Stroke………………………………130mm
Mean piston speed………………….9.5m/s
Compression ratio…………………….16:1
Specific fuel consumption……….197g/kwh
Engine oil filling quantity………….19liters
Cooling system filing quantity (long-termfilling)…………………..40liters
Thermostat with 71℃ opening begin rigid fan
Clutch model…………………...GF-￠420
Type……single-plate dry clutch,mechanically operating with air assisted.
Plate diameter……………………..￠420mm
Gear box
Model……………………...Fuller RT-11509C
No.of speeds……………..9 forward,1 reverse
Forward ratio……12.42;8.26;6.08;4.53;3.36; 2.47;1.81;1.35:1
Reverse ratio………………………….12.99
Front axle
Type………………………………..Elliot axle
Max.load……………………………...6500kg
Tandem axle
Type………………Pressed axle housing, single reduction with planetary wheel redactor
Ratio…………………………………...4.8
Max.load……………………….2X13000kg
Front suspension……..9 semi-elliptic leaf springs with shock absorbers
Rear suspension………12 semi-elliptic leaf springs with swing springs
Frame
Type……….parallel ladder with U-profiles and riveted cross members
Steering
Model………………………………ZF8098
Ratio……………………………………26.2
Fuel tank capacity……….350 liters, lockable
Wheels and tires
Rim…………………………………….8.5-20
Tire………………………………..12.00-20
No.of tires………………………………..10
Spare wheel carrier….with one spare wheel
Brakes
Service brake..Dual circuit pneumatic brake
Parking brake…..Spring energy,compressed air operating on rear wheels
Auxiliary brake………engine exhaust brake
Cabin
All-steel forward control, 70°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial , hydraulically damped adjustable driver’s seat & rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder.，safety belt, air conditioner
Capability………………………...2 persons
Electric equipment
Operating voltage….24V,negative grounded
Starter…………………………….24V,5.4kw
Alternator………………………28V,1500w
Batteries……………………..2X12v,135Ah
Cigar-lighter, horn headlamp, fog light,reverse light.
Overall dimension (length X width X height) ………6800x2496x3668mm
Wheelbase……………………3200+1400mm
Track
Front…………………………2022,2041mm
Rear……………………………….1830mm
Approach angle…………………………16°
Departure angle………………………70°
Front overhang……………………1500mm
Rear overhang……………………..700mm
Mass parameter
Rated traction weight………………35100kg
Maximum loading capacity at fifth wheel ……………………………….15660kg
Dead weight……………………….91800kg
Gross vehicle weight………………..25000kg
Gross combination weight………..60000kg
Performance
Driving type……………………………..6X4
Maximum driving speed(km/h)….102km/h
