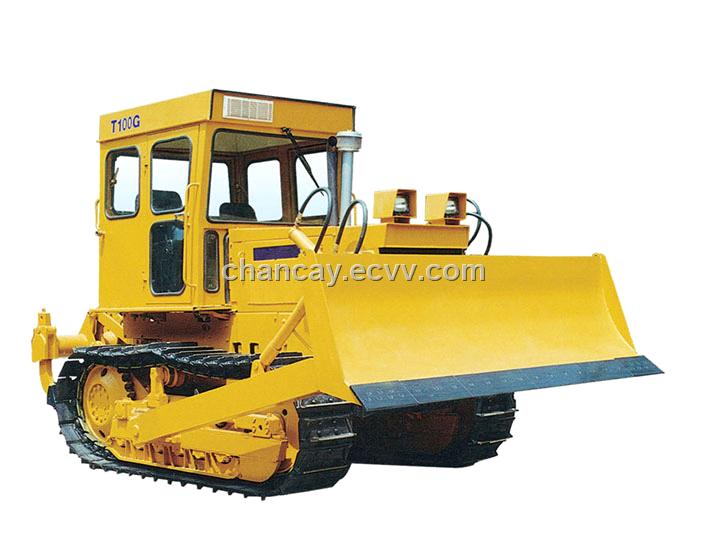

100hp Bulldozer

Prev Product

Next Product

Detailed Product Description

100hp Bulldozer adopts energy efficiency improved, low-pollution, high-efficiency and low-consumption diesel engine. It is two-plate dry constantly-engaged type, which carries a brake. The complete machine is high in its reliability, powerful in its traction force, advanced in its economic indicators, sound in its structure, and convenient in its repair and maintenance.

Machine parameters
Total weight	10400kg	10650kg	11360kg
Max. traction force	81kN	64kN	81kN
Track width	450mm	830mm	720mm
Average specific ground pressure	54.4KPa	-	36.5KPa
Overall dimensions (LWH)	419029852982 mm	499029352982mm	419032403020 mm
Diesel engine
Model	LR6105T13A	LR6105T13A	LR6105T13A
Rated power	73.5 kW	73kW	73.5 kW
Rated rotational speed	2300r/min	2300r/min	2300r/min
Specific fuel consumption	≤ 238g/kW.h	≤238g/kw.h	≤238g/kw.h
Max. torque	400 N.m	450 N.m
Traveling speed
Four forward gears	2.6-10.4km/h	2.5-10.4km/h	2.6-10.4km/h
Two reverse gears	3.1-6.7km/h	3.7-6.7km/h	3.1-6.7 km/h
Shovel blade parameters
Overall width	2985 mm	2935mm	3240 mm
Overall height	960 mm	960mm	878 mm

Post Date:	12/26/2008
Expiry Date:	12/21/2009
Other Price Terms:	FOB, C&F, CIF etc
