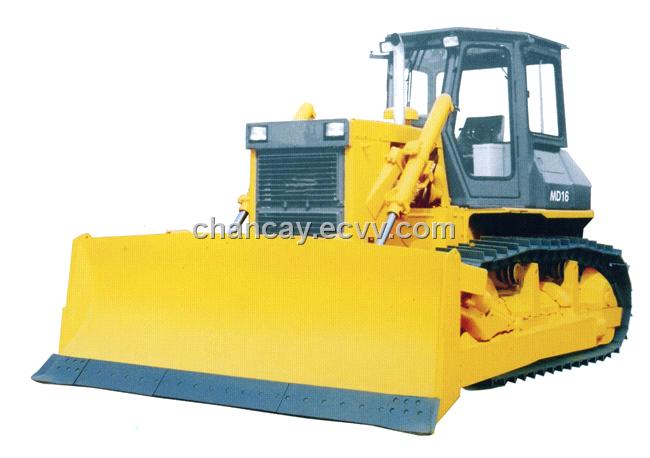

160hp Bulldozer

160hp Bulldozer

160hp Bulldozer

  Prev Product Contact Now
Contact Now		 Next Product

Detailed Product Description

160hp Bulldozer with Steyr and Shangchai Engine. Tilt blade, U blade & angular blade and three-shank ripper can be attached.
Engine
Model
Shangchai C6121ZG05 engine
WD615-T1-3A engine
Type
Water cooled, 4 stroke
Water cooled, straight line, 4 stroke, dry cylinder liner, direct injection
Rated power
131kw
160HP
Rated revolution
1900r/min
1850r/min
Max torque
770N.m/1400r/min
830N.m/1100-1200r/min
Fuel consumption
215 g/kw.h
198g/kw.h
Transmission System
Torque converter
Outside separating combination
Single-stage, single-phase, three element
Gearbox
Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted
Planetary gear, multi-disc clutch, hydraulic forced lubrication
Central transmission

Spiral bevel gear, single stage gear reduction, spattering lubrication
Steering clutch
Multiple-disc oil power metallurgy disc compressed by spring, hydraulic operated
Wet type, multi-disc, spring compression, hydraulic disengaging
Steering brake
Brake is oil two direction floating band brake operated by mechanical foot pedal
Wet type, foot pedal fuel pressure booster, with stopping brake
Final drive
The final drive are double reduction with spur gear and segment sprocket
Two stage spur reduction, spattering lubrication
Overall dimension
Overall length
5037mm
6430mm
Overall width
3270mm
3416mm
Overall height
3077mm
3015mm
Running speed
Gears
1
2
3
1
2
3
Forward(km/h)
0-4
0-6.9
0-10.9
0-3.1
0-5.47
0-9.07
Reverse(km/h)
0-4.8
0-8.4
0-12.9
0-4.03
0-7.12
0-11.81
Performance parameters
Operation weight
16200kg
17400kg
Ground pressure
55.23kPa
0.065Mpa
Min ground clearance
445mm
400mm
Track centers
1880mm
1880mm
Shovel capacity
4.5m3
3.9m3
Max gradient
30°
30°
