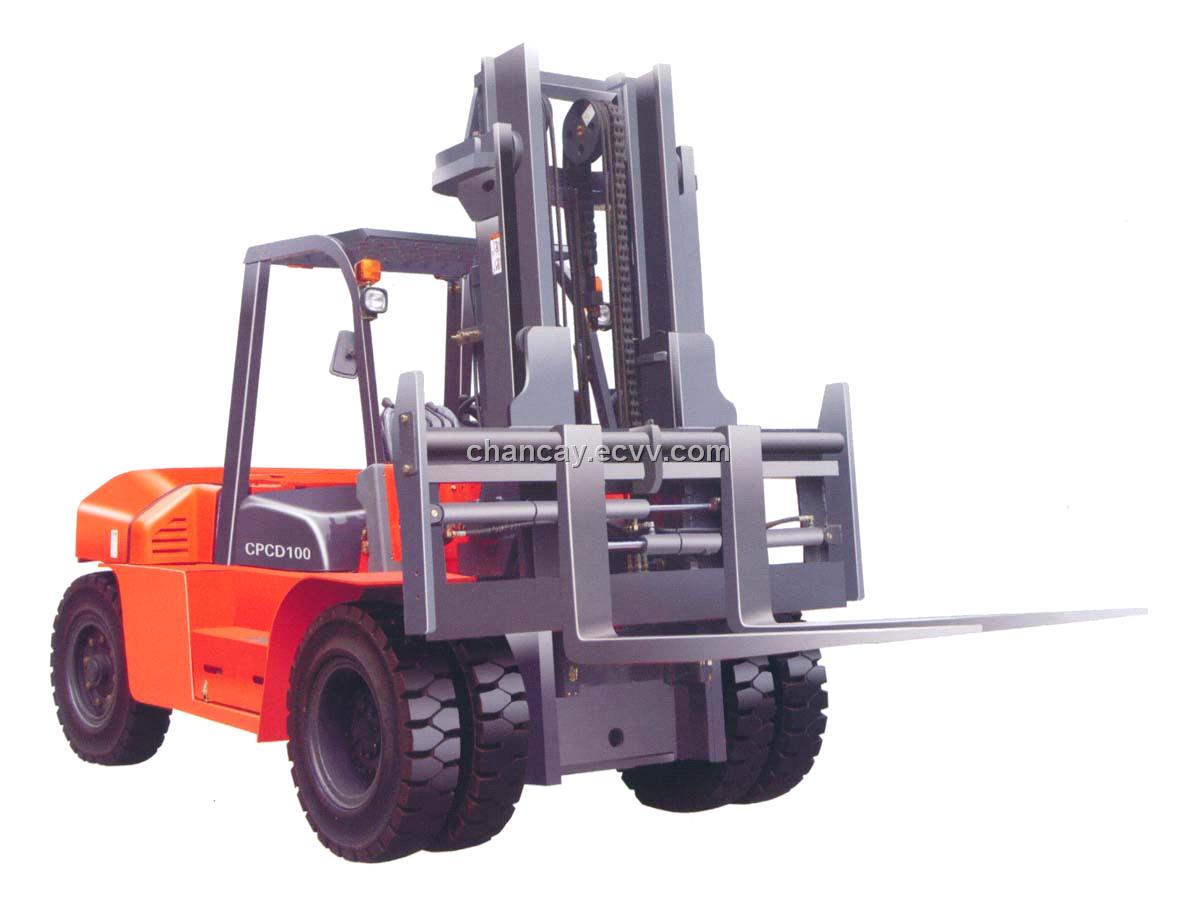

10t Forklift

Detailed Product Description

10t Forklift with CE certification.

Loading capacity		10000kg
Loading center		600mm
Mast lifting height		3000mm
Mast free lift		210mm
Mast lifting speed(with load)		310mm/s
Tilting Angles(front/rear)		6°/12°
Driving speed		0-10, 0-30km/h
Drawbar pull(with load)		57kN
Grade ability(with load)		21.2%
Outside turning radius		3950mm
Min intersecting aisle		3540mm
Min turning radius(with load)		245mm
Engine	Model	CY6102/ISUZU
	Rated output	80.9/82kw
	Rated power speed	2500/2200
From size	Overhead length	5430mm
	Overhead width	2245mm
	Overhead height	2560mm
	Overhead height (outside of forks)	2845mm
Wheelbase		2800mm
Tread	Front-wheel drive	1600mm
	Trailing wheel	1700mm
Overhang(front)		718mm
Fork		801751220mm
Weight		12400kg
