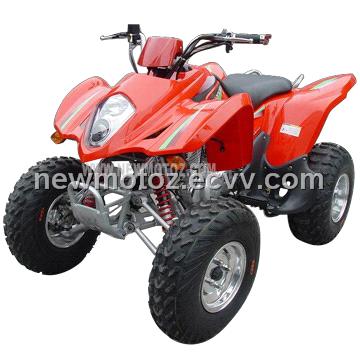

Model:MA300E-L
Colors : Black | Blue | Green | Red | Yellow
KEY FEATURES:
300cc engine, 4 stroke, chain drive, 5 forward gear, rear disc brake,alloy rim ,with EEC homologation
Specifications
Engine Type 300cc, air-cooled, 5 forward gear
Final Drive chain drive
Bore x Stroke(mm) 78x61.2mm
Piston Displacement(cc) 292.5cc(GN300)
Compression Ratio 8.9:1
Max Power(kw/r/min) 12
Starter Sytem electric
Lubricaiton wet sump
Trasmission 5 forward gear with reverse
Final Ratio 2.667(40:15)
Overall LxWxH(mm) 1735x1037x1050
Packing LxWxH(mm) 1920x1140x1200
Wheel Base(mm) 1117
Seat Height(mm) 122
Ground Clearance(mm) 762
Load capacity(kg) 165
Brake(Front/Rear) disk/disc
Tire, Front AT21x7-10
Tire, Rear AT21x10-8
Ignition Type CDI
Fuel Tank Capacity(L) 7.5
Front Suspension double wishbone/7.1"
Rear Suspension Swing Arm/7.1"
Max Speed(km/h) 75
NW(kg) 220
GW(kg) 250
Quantity of Loading 12pcs /20'ft;24pcs /40'ft,36pcs/40'Hq
Please contact us if you are interested in 300cc EEC ATVs .
Different Colors of 300cc EEC ATV are available.
We can supply all kinds of 300cc EEC ATVs .
We can also supply EEC ATVs accessories as your demands.Besides EEC ATV, we can offer you other ATVs.Our company produce not only ATVs ,but also Buggy, Dirt bike, Scooter and pocket bike, and so on.
