Colors : Black | Blue | Green | Red | Yellow
KEY FEATURES:

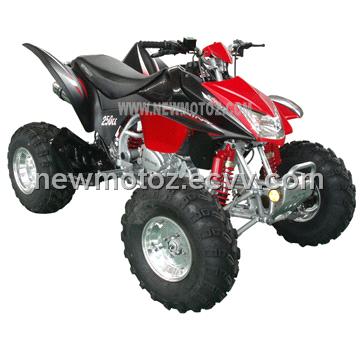

250cc engine,air cooled,,4 stroke,chain drive,four speed with reverse,front/rear disc brake,double A swing arm and gas-charge shock absorber at front
Specifications
Length x Width x Height(mm) 1870x1150x1160
Wheel Base (mm) 1260
Engine Type: Single cylinder, air-cooled, 4-stroke
Start Mode: Electric
Power(kw/r/min): 11.5kw/6500rpm
Max Torque(N.m/r/min): 17.5N.m/5500rpm
Max Speed(km/h) ≥75
Dry Weight(kg) 190
Transmission Mode: Chain
Braking Mode(front/rear): Disc/disc
Specification: 12V 14AH
Tank Capacity(L) 9.8L
Front Hanging: Integral ballonet absorber
Rear Hanging: Integral ballonet absorber
Specification of tyre: Front wheels: 23x 7-10
Rear wheels: 22x10-10
Cylinder Diameter*Journey(mm): 67x65mm
Displacement(ml): 230
Shift Gear: 4 gears with reverse gear, manual clutch
Mini Turning radium(mm): 2750
Parking Trig: Hydraulic pressure lock
Ignition Mode: CDI
Loading Capacity(kg) 150
Person: 1
Compressoin Proportion 9.2:1
Conveyance: Qty/20’GP: 12units Qty/26’GP: 28unit
Qty/40HQ: 42unit
Please contact us if you are interested in 50cc OFF-ROAD ATVs.
Different Colors of 50cc OFF-ROAD ATVs are available.
We can supply all kinds of 50cc OFF-ROAD ATV.
We can also supply 50cc OFF-ROAD ATV accessories as your demands.Besides 50cc OFF-ROAD ATV, we can offer you other ATVs.Our company produce not only ATVs ,but also Buggy, Dirt bike, Scooter and pocket bike, and so on..
