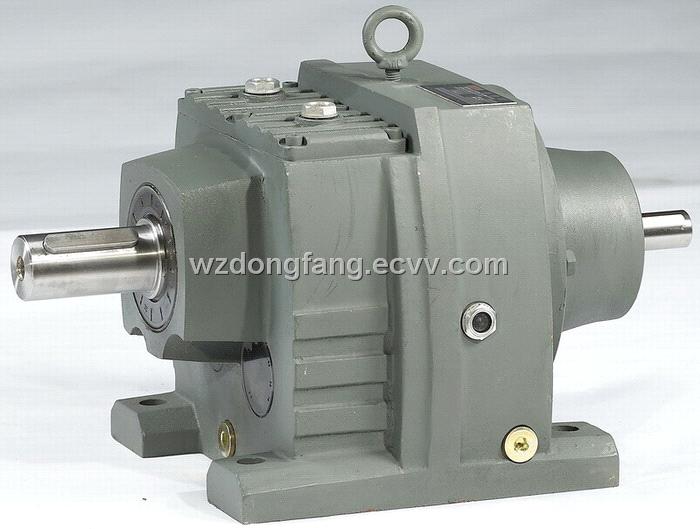

R Type Speed Reducer

Key Specifications/Special Features:

1. Small off-center output and compact structure
2. Maximum utilization of housing space
3. Integral casting housing with good rigidity to enhance the shaft strength and service life of bearing
4. Types of installation and output base
5. Big or small flange type installation and output through solid shaft
6. Input types: Couple-type motor, input through shaft and input through coupling flange
7. Speed reducing ratio:
8. Two-stage: 5-24.8
9. Three-stage: 27.2-264
Average efficiency:
11. Two-stage: 96%
12. Three-stage: 94%
13. Combination of RR: 85%
