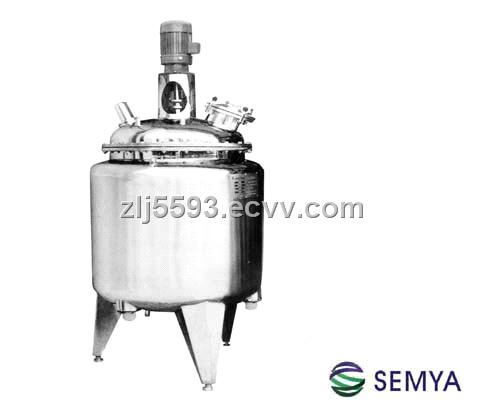

Reaction tank

Reaction tank is a process vessel which is mainly used for hydrolysis, neutralization, crystallization, distillation evaporation and storage in food, medicine, and chemical industries. Reaction tank is made of stainless steel sus304 or sus316L. We supply various kinds of agitators with this machine. The rotation mechanism is mechanical sealed .The heat exchanger adopts jacket or coiled pipe, in which the medium can be steam, or heating transfer fluids.

Capacity( L)	100	200	500	1000	1500	2000	2500	3000	4000	5000
Nominal diameter( mm)	500	600	800	1000	1200	1200	1400	1400	1500	1600
Nominal pressure inside tank(MPa)	0.25~0.5
Nominal pressure inside jacket(MPa)	0.25
Motor power(Kw)	1.1	1.5	2.2	4.0	4.0	4.0	5.5	5.5	5.5	7.5
Rotation speed of mixer(R/min)	63			85	130	180

Can also be made according to customers requirements
