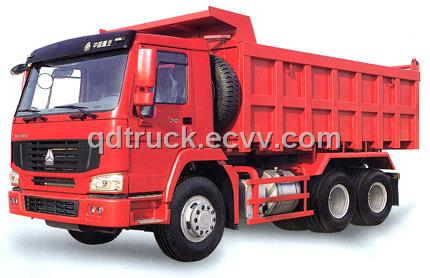

Engine
Make and model………STEYR WD615.87
Type……….Diesel 4-stroke direct injection engine,6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement ……………………9.726 liters
Maximum output…………………………… 290HP@2200rpm(213KW@2200rpm)
Max . torque……1160NM@1300-1600rpm
Min.fuel consumption………….....198g/kwh
Cluth
model……………………………...GF-￠420
Type……single-plate dry clutch,mechanically operating with air assisted.
Plate diameter……………………..￠420mm
Gear box
Model……………………....................9JS119
No.of speeds……………..9 forward,1 reverse
Forward ratio……12.11;8.08;5.93;4.22;3.36; 2.41;1.76;1.32,1.00
Reverse ratio………………………….12.66
Front axle
Type……..Rigid stub axle with double T-cross members
Max.load……………………………...6500kg
Tandem axle
Type………………Pressed axle housing, single reduction with planetary wheel redactor
Ratio…………………………………...5.73
Max.load……………………….2X13000kg
Front suspension……..9 semi-elliptic leaf springs with shock absorbers
Frame
Type……….parallel ladder with U-profiles and riveted cross members
Steering
Model……………………………...…ZF8098
Rotio…………………………………...20.2
Pump max.pressure………………13000Kpa
Fuel tank capacity……………………..300L
Wheels and tires
Rim………………………………….8.00-20
Tire………………………………..12.00-20
No.of tires………………………………..10
Spare wheel carrier….with one spare wheel
Brakes
Service brake..Dual circuit pneumatic brake
Parking brake…..Spring energy,compressed air operating on rear wheels
Auxiliary brake………engine exhaust brake
Cabin
All-steel forward control, 70°hydraulically tiltable to the front, 3-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial , hydraulically damped adjustable driver’s seat & rigid adjustable co-driver’s seat, heating & ventilation system, adjustable roof flap,with stereo radio/cassette recorder, safety belt,air conditioner
Capability………………………...2 persons
Electric equipment
Operating voltage….24V,negative grounded
Starter…………………………….24V,5.4kw
Alternator…………………………28V,756w
Batteries……………………..2X12v,165Ah
Cigar-lighter, horn headlamp, fog light,reverse light.
Instrument panel
Active check control with indicators,with this instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant
Front wheel alignment
Camber…………………………………1°
Caster…………………………………..3°
King pin inclination……………………1°
Toe-in (measured at the wheel diameter ￠648mm with cross-ply tyre)……….3-4.5mm
Overall dimension (length X width X height) …………………7634x2496x3170mm
Wheelbase……………………2925+1350mm
Track
Front…………………………...……2022mm
Rear……………………………...….1830mm
Approach angle…………………………19°
Departure angle……………………...…24°
Front overhang……………………1500mm
Rear overhang……………………..1859mm
Mass parameter
Dead weight…………………….…..12460kg
Pay loading………………………....25000kg
Body options
Body…………………………..……17.38cum
Body capacity depends upon the density of the material.
Body dimension(lengthxwidthxheight)
………………….…….4800x2300x1400mm
Performance
Driving type……………………………..6X4
Maximum driving speed(km/h)…140km/h
Turning circle diameter……………….16.5m
Fuel consumption………………36L/100km
Max.body tipping angle……………….52°
