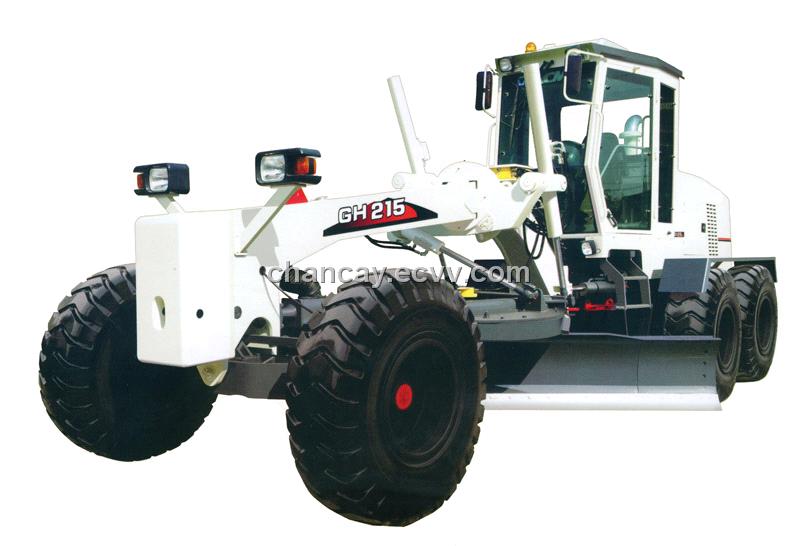

Motor Grader GR series

Detailed Product Description

Motor Grader with Cummins engine adopts static hydraulic driven method. Also we have CE models for this series.

Basic Parameters
Engine		Cummins Engine
Rated Power		160kW(215hp)/2200rpm
Overall Dimension(Standard)		9422×2601×3430mm
Total Weight(Standard)		17000kg
On front wheels		5100kg
On rear wheels		11900kg
Tyre		17.5-25RP12
Min. Ground Clearance		430mm
Distance between Front and Rear wheels		6266mm
Distance between Middle and Rear wheels		1639mm
Working Parameters
Max. Steering Angle for Front Wheel			±45°
Max. Decline Angle for Front Wheel			±17°
Max. Swing Angle for Front Wheel			±15°
Chassis Steering Angle			±25°
Min. Turning Radius			7.8mm
Blade	Max. Raising Height		460mm
	Max. Blade Cutting Depth		500mm
	Max. Sloping Angle for Blade		90°
	Cutting Angle		28°～70°
	Swing Angle		360°
	Length*Curved Height		4270×610mm
Performance Parameters
Forward Speed		5、8、11、19、23、38km/h
Backward Speed		5、11、23km/h
Max. Tractive Force（f=0.75）		87kN
Max. Grade ability		20°
