Product selling point:

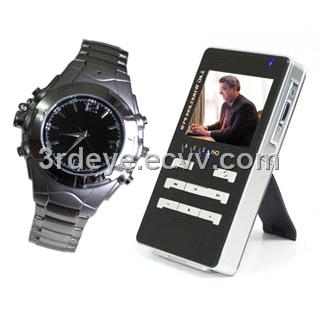

>Small size of transmission camera hides into watch
> Built-in antenna
>Small palm size of receiver DVR for mobile usage
>Video Format: Mpeg-4,AVI (640 or 320 @ 30fps) MP3,Wav
>Memory Support: SD: 1GB to 4GB./ Usb-Disk storage up to 20GB
>2.5" LCD screen with 882 × 228 resolutions
>Rechargeable Li-battery in receiver DVR enable at least 2.5 hours continuous working
>380TV lines clear picture display
>4-channel available to avoid interference
>Built-in microphone in camera and speaker in receiver
>Min. 20m transmission distance without blocks
Parameter list:
|
Item |
Value |
|
Transmission Frequency |
ISM 2,400MHz~ 2,483MHz 4CH* |
|
Modulation Mode |
FM |
|
Antenna Type |
Hidden |
|
Unobstructed Effective Range |
20m(Without Block) |
|
Operating Temperature |
0℃~ +50℃ / +14℉~ +122℉ |
|
Storage Temperature |
-20℃ ~ +60℃ / -4℉ ~ +140℉ |
|
Operating Humidity |
85%RH |
|
CAMERA |
Imaging Sensor Type |
CMOS |
|
CMOS Total Pixels |
510×492(NTSC) |
|
Horizontal Resolution |
380 TV Lines |
|
View Angle |
62° |
|
Minimum Illumination |
3.0 Lux / F1.5 |
|
Transmission Power |
10mW |
|
Power Supply |
DC 5V 95mA |
|
Battery Performance |
Li-ion Battery |
|
Battery Capacityl |
130 mAh |
|
Charge time |
30 minutes |
|
Working Time |
1 hour |
|
Dimensions( HX D) |
15mm*48mm |
|
Weight |
150g |
|
RECEIVER
DVR |
Receiving Sensitivity |
≤-85dBm |
|
LCD Type |
TFT |
|
LCD Screen Size |
2.5" |
|
Resolution |
882 × 228 |
|
Active Area |
49.2mm×38.142mm |
|
Dot Pitch |
0.055mm×0.163mm |
|
View Angle(U/D/L/R) |
10°/ 30°/ 45°/ 45°(Min.) |
|
Brightness |
250 cd/m3 |
|
Contrast Ratio |
300:1 |
|
Resolution |
640*480 / 320*240 |
|
Compressed video format |
MPEG-AVI 30pfs |
|
Speaker |
1W |
|
Flash memory |
64M |
|
Storage media |
SD/MMC (1GB to 4GB) |
|
Internal battery |
Li-ion battery 2500Mah |
|
Working Time |
2.5hour |
|
Power Supply |
DC 5V 1A |
|
Vided Output level |
1Vp-p@75ohm |
|
Audio Output level |
1Vp-p@10KΩ |
|
Weight |
180g |
|
Dimensions (WxDxH) |
70mm×120mm×24mm |
|
Solar charger |
Power Source |
DC 5V 200mA |
|
Power output |
DC 5V 200mA |
|
Li-battery |
1350MAH |
|
Dimensions (WxDxH) |
43mm×98mm×13mm |
|
Weight |
66g |
* Channel Frequency: CH1=2414MHz;CH2=2432MHz;CH3=2450MHz;CH4=2468MHz
