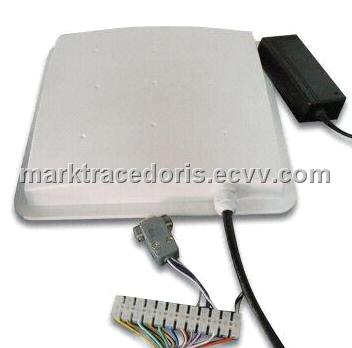

MR6021A(Long range reader)

Detailed Product Description

1. Logistics and warehouse Management:Goods flow,warehouse management,and the flowing management of mail,parcel,luggage.

2. Intelligent parking Management :Parking management and automatic charge

3. Productive lines Management: Production process fixed identication

4. Product counterfeit-proof inspection:Using memory’s write-protect functions inside tags,and identifying with true-false of products

5. Other fields:Used widely in club management,library,student’school,consumption management,time management,dinner management,pool management

Capability specifications

Scanner Model	MR6021A
Protocol	ISO18000-6B，ISO18000-6C（EPC GEN2）
Frequency Range	ISM　902~928MHZ (FCC)
Operation Mode	Fixed Frequency or FHSS Software Programmable
RF Power Output	0~30dBm
Reading Rate	Software Programmable，Average Reading per 64Bits：<10ms
Reading Mode	Auto And Touch or Software Programmable
Communication Ports	1.RS232 2.RS485 (Syris485) 3.Wiegand26/34 4.RJ45 Software Programmable
Data Input	Input One Team
Reading Range	Reading Tag >6 m
Reading Clue	Buzzer and LED
Antenna	Built-in Antenna，Gain:6dbi
Power Consumed	DC +9v AC–DC Adapter, less than 3 Amps
Dimension	240mm×240mm×30mm
Avoirdupois	1 Kg
Operation Temp	－20℃~＋80℃
