Detailed Product Description

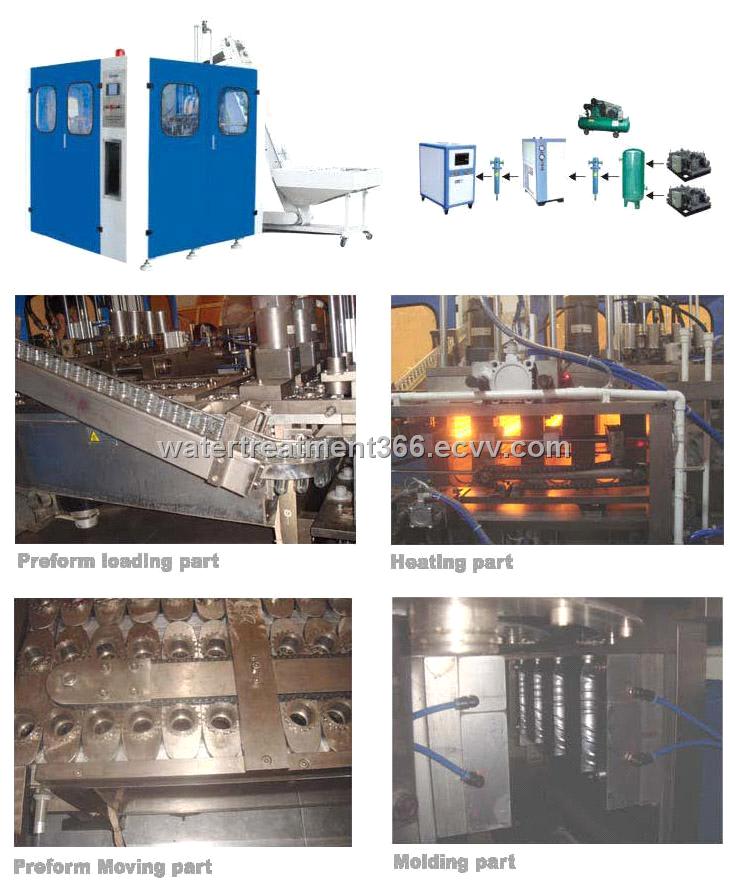

Product Name ： Bottle Blow Moulding Machine QCL-1800
Item： QCL-1800
Product Define： Caption Detail：
Items QCL-1800 type
force of closing mold 200KN (old type)
production capacity 1800Pcs/H
Max. bottle containment 0.1L-2L
working air pressure of main machine 1.05-1.25Mpa
blowing air pressure 2.2-3.5Mpa
heating power general power 21KW
Max. stretch length 400mm(also: height of bottle)
Max. Mould Thickness 200mm
Allowed Mould Thickness 180-240mm
Allowed Mould Width 400mm
Distance Between Two Mould Centers 100-200mm
Weight 2000KG
main frame outsize(L-W-H) 1500×650×1700mm
Oven outsize 1400×680×1350mm
ATTENTION: QCL-1800 type (other specifications):
bottle's neck diameter's scopes:ф20-40mm，
bottle's body diameter's scopes:ф40-120mm，
bottle's height: 400mm,
clamping/closing stroke: 150-200mm,
effective area of mould: 320×450 cubic mm,
diameter of stretch pin: ф8-16
cooling water(6-10℃):0.3-0.5Mpa.
| FOB Price: | USD40000-50000Shenzhen |
| Other Price Terms: | FOB Shenzhen |
