Chengdu Jiexun Electronics Co., Ltd.

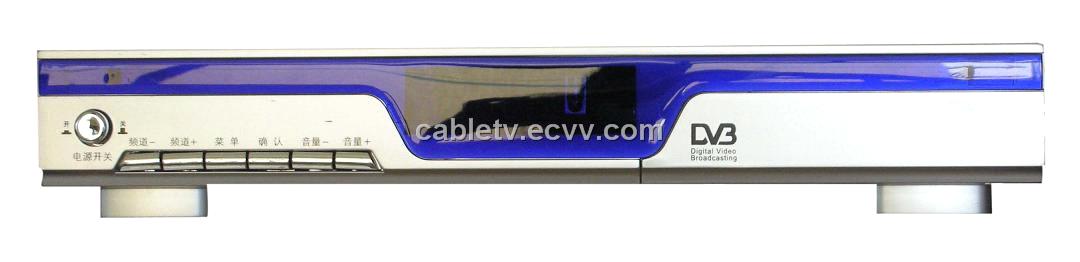

sell set top box-cable
The device meets the DVB –C standard and supports English and Chinese interfacing as well as multi condition receiving system, PAL/NTSC auto switching, EPG pre-viewing. It supports text messaging and program editing, mobile and deleting etc. It contains the Locking functions, Power-off memory, LED display, one key return and supports single voice channel, dual voice channel and stereo channels. It contains a range of games and supports Loader technology, on-line upgrade, on display of advertises and advertise menu.
Specifications
Item
Specs
Input frequency range
47~ 862MHz
Input impedance
75Ω
Symbol rate range
3~6.952MBaud
Input level
35 ~ 85dBμV
Decode format
MPEG-2
Bit rate
2 ~15Mbps
Output format
NTSC/PAL
Video output
1V±20mV(p-p)
Image resolution
720×576
Frequency feature
±0.8dB(≤4.8MHz)
Differential Gain
≤8%
Differential phase
≤8°
Light delay
≤50ns
Audio output
L／R
Audio signal to noise ratio
≥70dB
Output type
RCA
Audio distortion
≤1.5％
Left right channel level difference
≤0.5dB(60Hz~18KHz)
Demodulate mode
QAM 16/32/64/128/256
LNB voltage
0V / 18V
Power supply
AC100V ~ 240V
Power Consumption
＜ 20W
