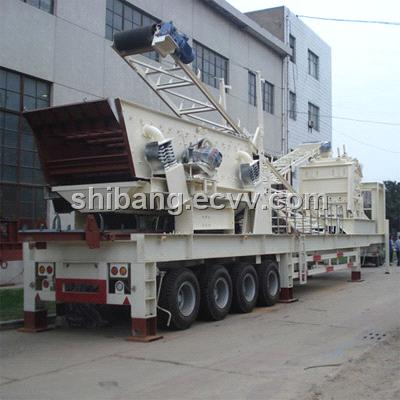

YGFS various combined Crushing Plant

YGFS various combined crushing Plant

SBM company one of the most famous rock and mineral processing company in the world, is launching a new comprehensive portable plant for efficient fully mobile crushing.
Features of YGFS various combined crushing Plant main unit:
-- Economical and practical mobile crusher, fitting for the medium and small plants clients, auto-integrative structure, self-loads crushing-screening system, independent crushing system.



Fixed method of whole mobile crusher (Routine way)
Choose the working place→Level the place→Transport the mobile crusher to the reasonable place→Extend the elevating landing leg→Dig a hole under the fixed leg. The holes size is up the soil. If the soil is loosening, please dig deeper and larger. →Fix the active leg to the fixed leg with binder bolt→ Fill the hole of active leg with concrete→Adjust the face of concrete after congealing→ Retract the elevating landing leg. Putting some crosstie or supporting tools under the vehicle will better steady the whole machine.

Specification and model of main unit:

Parameter	Vibrating feeder	Impact cusher	Belt conveyor (down)	Belt conveyor (up)	Belt conveyor	Vibrating screen	capacity(t/h)	Power (kw)	Dymano
Model
Y3G83F1010S	GZD-850X300	PBF1010	B500X7M	B650X15M	B650X10M	3YZS1548	30-275	95.5-115.5	adapting
Y3G938F1210S	GZD-960X3800	PBF1210	B650X7M	B650X15M	B650X10M	3YZS1848	56-330	158.5-180.5	adapting
Y3G1142F1214G	GZD-1100X4200	PBF1214	B650X8M	B800X16M	B800X11M	3YZS1860	65-586	196.5-232.5	adapting

Parameter	Length L1	Width B1	Height H1	Max height H2	Max. width B2	Heigh of conveyor H3	Wheel	Weight (t)
Model
Y3G83F1010S	18000mm	2800mm	4500mm	6000mm	2800mm	4000mm	Paratactic tri- axle	53
Y3G938F1210S	18000mm	2800mm	4500mm	6500mm	3000mm	4000mm	Paratactic tri- axle	58
Y3G1142F1214G	18000mm	3000mm	4500mm	6500mm	3000mm	4200mm	Paratactic tri- axle	63

Specification of vehicle: chassis height H4: 1650MM, Height difference between site and wheel H5: 380MM.

Post Date:	1/4/2009
Expiry Date:	12/30/2009
Other Price Terms:	CIF, CFR, negotiable
