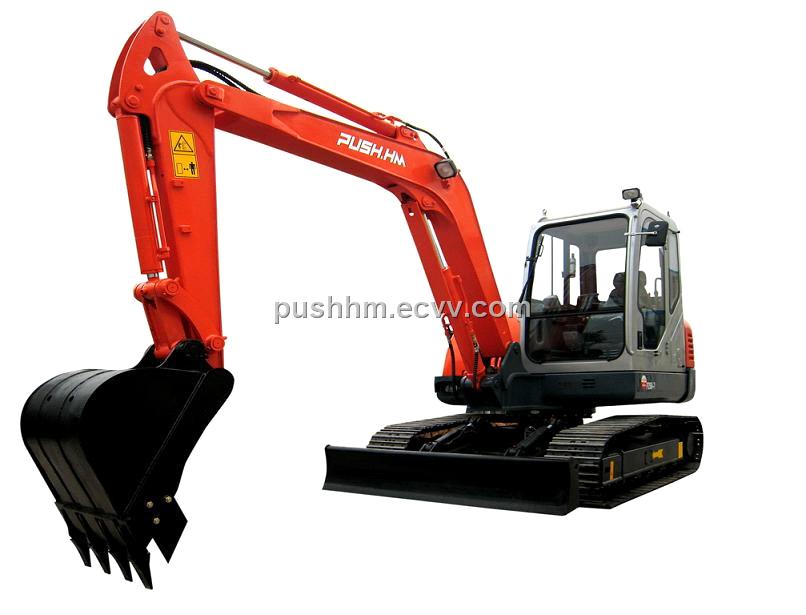

Crawler Excavator PZ60-7

Prev Product

Detailed Product Description

Model	PZ60-7
Standard Bucket capacity(m³)	0.25
Operating weight (T)	5.8
Engine	Model	YANMAR 4TNV94L
	Power/Rotate speed (kw/rpm)	39/2200
	Fuel tank （L）	110
Hydraulic system	Main oil pressure (Mpa)	21.6
	Max variable pump capacity (L/min)	155.5
	Operating style	Pilot control
	Capacity of hydraulic oil tank(L)	105
Performance data	Swing speed (rpm)	9.5
	Travel speed(km/h)	2.1~4.2
	Grade/Climb ability( % )	70
	Max pulling force(KN)	57
	Ground pressure (Kpa)	33.3
	Bucket digging force(KN)	33.2
	Stick digging force(KN)	28
Dimensions (mm)	A Total width (upper carriage)	1868
	B Overall height	2600
	C Total width (under carriage)	2000
	D Crawler width	400
	E Min ground clearance	354
	F Overall length	5780
	G Crawler length	2540
	H Crawler ground length	1990
	I Counter weight clearance	700
	J Dozer Blade height	364
Working range (mm)	A Max reach at ground level	6066
	B Ground digging reach	5932
	C Min slew radius	2200
	D Max working height	5902
	E Max dig depth	3792
	F Max dump height	4066
	G Max vertical digging depth	3142
