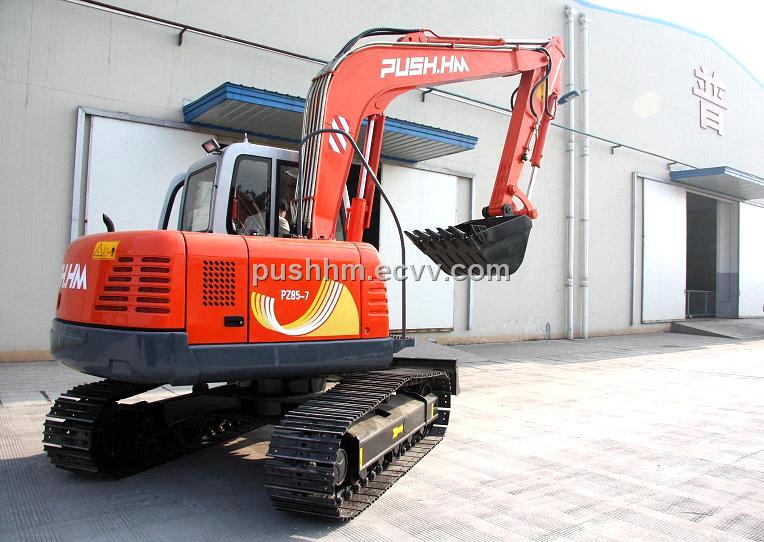

Crawler Excavator PZ85-7

Detailed Product Description

Model	PZ85-7
Standard Bucket capacity (m³)	0.33
Operating weight (T)	8.3
Engine	Model	4TNV98T-SFN
	Power/Rotate speed (kw/rpm)	53.1/2200
	Fuel tank （L）	125
Hydraulic system	Main oil pressure (Mpa)	28
	Max variable pump capacity (L/min)	160
	Operating style	Pilot control
	Capacity of hydraulic oil tank (L)	145
Performance data	Swing speed (rpm)	10
	Travel speed (km/h)	2.66/5.23
	Max Gradeability ( % )	70
	Max traction force (KN)	67
	Ground pressure (Kpa)	36
	Bucket digging force (KN)	54.4
	Stick digging force (KN)	38.5
Dimensions (mm)	A Total width (upper carriage)	2320
	B Overall height	2663
	C Total width (under carriage)	2300
	D Crawler width	450
	E Min ground clearance	400
	F Overall length	5855
	G Crawler length	2912
	H Crawler ground length	2265
	I Counter weight clearance	833.5
	J Dozer Blade height	397
Working range (mm)	A Max reach at ground level	7065
	B Ground digging reach	6925
	C Min slew radius	1975
	D Max digging height	7527
	E Max digging depth	4369
	F Max dump height	5443
	G Max vertical digging depth	3619

Post Date:	1/5/2009
Expiry Date:	12/31/2009
