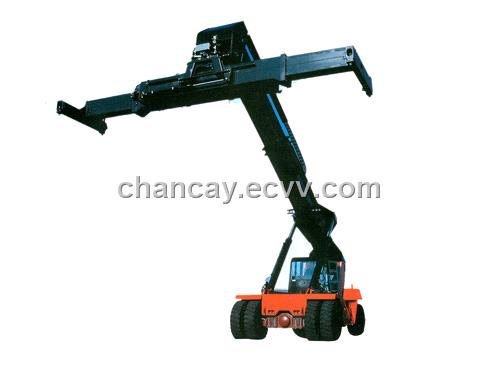

Reach Stacker

Reach Stacker

Reach Stacker

  Prev Product Contact Now Next Product

Detailed Product Description

Reach stackers with flexibility & higher stacking and storage capacity are widely used in ports.
Rated capacity(Kg):
31000(Front Distance1900mm)(5-HIGH)
45000(Front Distance1900mm)(4-HIGH)
31000(Front Distance3850mm)(4-HIGH)
15000(Front Distance6350mm)(3-HIGH)
Maximum lift height(mm):
14850
Maximum lift speed(mm/s):
380/240
Maximum lower speed(mm/s):
300/250
Travel speed(Km/h):
1st 4/4
2nd 9/9
3rd 16/16
4th 25/25
Grade ability (%):
30/15
Under clearance(mm):
400
Minimum turning radius(mm):
8200
Brake stopping distance (m):
<=7
Overall length(mm):
11350
Overall width(mm):
6042
Overall height(mm):
4600
Wheel base(mm):
6000
Tread(mm):
FRONT 3033
REVERSE 2750
Spreader:
SPREADER ELME 817
Service weight(Kg):
73000
Engine:
MODEL CUMMINS M11-C330
DISPLACEMENT 10800cc
RATED POWER/SPEED 246 Kw /2100 rpm
MAX.TORQUE/ SPEED 1458/1300 rpm
Tyre:
FRONT 4X18.00-25-40PR
REAR 2X18.00-25-40PR
Post Date:1/6/2009
Expiry Date:1/1/2010
Other Price Terms:FOB, C&F, CIF etc
