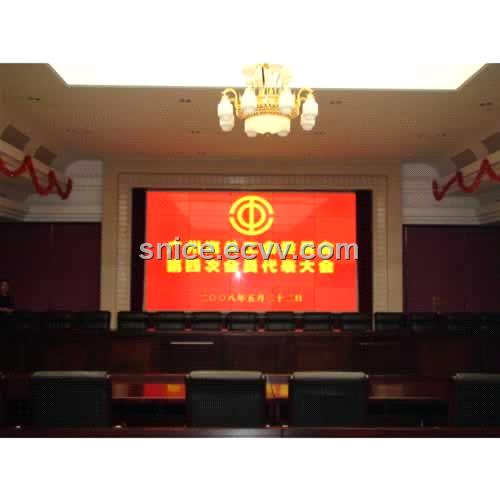

46inch LCD wall

Screen Size (Active Area)

46 inch

Aspect Ratio

16:9

Number of Pixels

1366 (H) x 768 (V)

Pixel Pitch (H x V) mm

0.648 (H) x 0.648 (V)

Response Time

8ms

Displayable Colors

8 BIT, 16.7M

Brightness

700cd/m2

Contrast Ratio

1200:1

Color Temperature

10000K

Viewing Angle (H/V)

178/178 degrees

Active Display Area

2.90ft (H) x 1.63ft (V)

Power Supply

AC 100V ~ 240 V, 50/60Hz, Universal, ±10%

Power Consumption

250W typical, normal operation

Power Management

VESA DPMS

Backlight Life

50000 hour

Recommended Resolution

1366 x 768

(PC) Input

D-Sub 15-pin x 1
RGB

RGB: 0.7V [p-p] (75 ?), H/CS/V: TTL (2.2 ?),
SOG: 1V [p-p] (75 ?)

Yuv

Up to 1920 x 1080/ 75Hz

YUV

Ypbpr

Protection Glass

Anti Glare

Reflection Rate = 0.5%

Temperature

Operational

0 ~ 50 oC

Storage

-20~70 oC

Humidity

Operational

20~80%

Storage

20~80%

Pressure

Operational

800~1114 hPa (Altitude: 0~2,000m)

Storage

600~1114 hpa (Altitude: 0~4,500m)

Standard Accessories

VGA Cable, YUV Cable, Users Manual, Power, Cable

Optional Accessories

Wall-Mount or Ceiling-Mount Bracket
