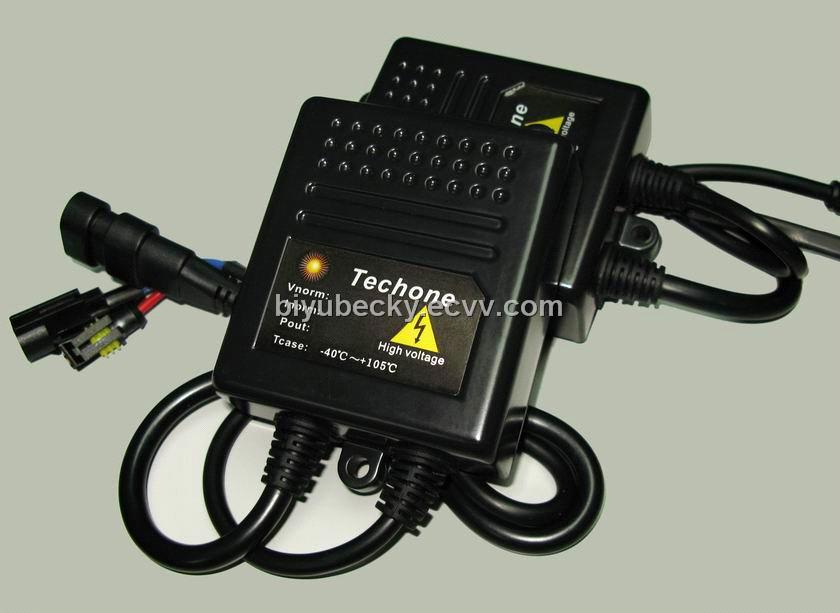

electronic ballast for solar lights

Detailed Product Description

Model number	HIDQQ35W/HIDQQ50W/HID150W
	Ventilation: Full-potted, no fan, waterproof
Specification	Parameters
Strike voltage	23~25kV
Required lamp voltage	85~130V
Voltage input range	9Vdc~32Vdc
Rating V. In	12/24Vdc
Input frequency	50Hz~60Hz
Power factor	＞0.99
Efficiency	93 %( Max)
THD	＜10%
Output power	50W
Current crest factor	＜1.5
Output frequency	approx. 170 Hz
Protection of short circuit	Yes
Protection of open circuit	Yes
Protection of ignition failure	Yes
Protection of thermal	Yes
Protection of end of lamp life (EOL)	Yes
Weight	0.8kg/1.9lb
Max. Lamp distance from ballast	15m/49ft
Operating temperature range	-40℃~+105℃
Dimension (L X W X H)	88.5× 80× 37.5 (mm)
Max case temperature (T C)	105℃
Safety and regulation	IEC61347
EMC	EN55015
