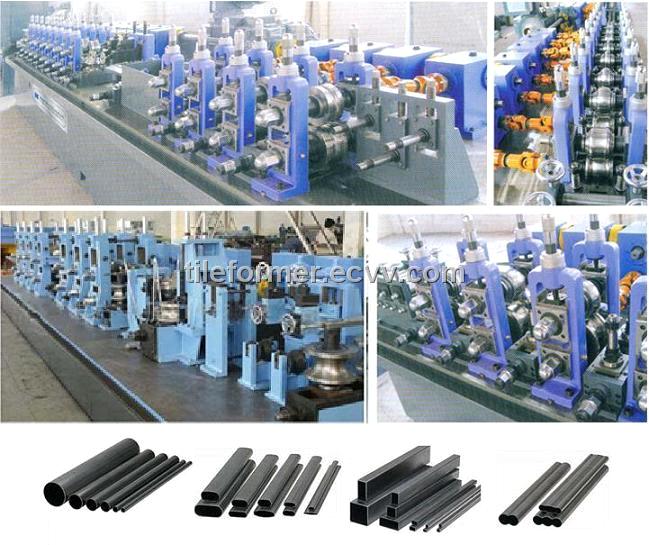

pipe forming machine

Prev Product

Next Product

Detailed Product Description

1) Basic Components:

{Steel Tape} →→ Double-head decoiler →→ {Cutter and welder for tape-head(prepared by customer)} →→ Vertical collecting or horizontal accumulator →→ Forming M/C(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ Deburr frame →→ Cooling unit →→ Sizing unit and straightener →→ Flying saw under computer-control →→ Run-out table.

2) Main Technical Parameters:

Model	Diameter of Welded Tubes (mm)	Wall Thickness of Welded Tube (mm)	Speed of Tube Welding (m/min)	Power of Major motor (KW)	High Frequency Power (Kw)
SM16	Φ8～Φ16	0. 3～1. 0	0～100	22	60
SM26	Φ10～Φ26	0. 4～1. 5	0～90	45	100
SM32	Φ12～Φ38. 1	0. 5～1. 8	0～90	75	100
SM50	Φ16～Φ51	0. 6～2. 0	0～80	45*2	150
SM60	Φ20～Φ63. 5	0. 8～3. 0	0～70	75*2	200
SM100	Φ30～Φ100	1. 0～4. 0	0～70	132*2	300
SM130	Φ40～Φ130	1. 0～6. 0	0～50	160*2	400
SM165	Φ50～Φ165	2. 0～6. 0	0～50	200*2	600

Post Date:	1/18/2009
Expiry Date:	1/13/2010
