guardrail forming machine
1、Process：
Feed---decoil and input the steel plate---punch---roll and form the shape---cut
2、Feeding machine:
a、It adopts automatic hydraulic tensioning inside
b、max support weight: 8000kg
c、max diameter:2200mm
d、hydraulic power: 3kw
e、tank’s diameter:120mm working pressure: 10Mpa
f、max width:500mm

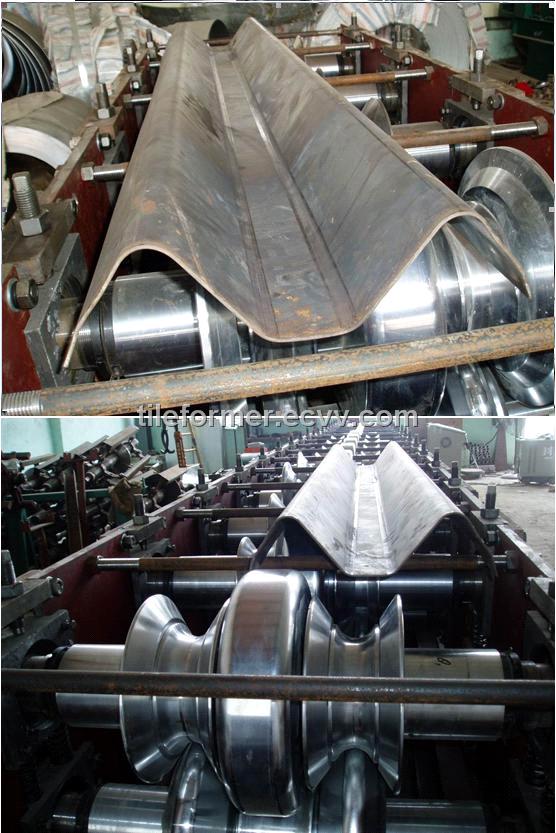

3、Forming
a、The roller’s diameter is Φ85mm, the material is GCR15 with quenching HRC58°-62°, plating Cr on the surface.
b、Punching: hydraulic punching(Cr12 mould steel with quenched treatment 60-62℃, it can adjust by yourself)
c、Hydraulic cutting(Cr12 mould steel with quenched treatment 60-62℃)
d、Main power: 18.5kw
e、Cycloid needle speed reducer power: 18.5kw
f、Transmission: Chain drive, 1.5 inches two rows of chains
g、Hydraulic station electrical machinery power: 15KW pressure: 20Mpa
h、Speed: 5m—12m/min
i、The machine size: 12mL*1.2mW*1.5mH
4、The machinery includes: hydraulic automatically feeding machine 1 station, main forming machine(including forming, cutting, punching, computer, hydraulic station)
|
