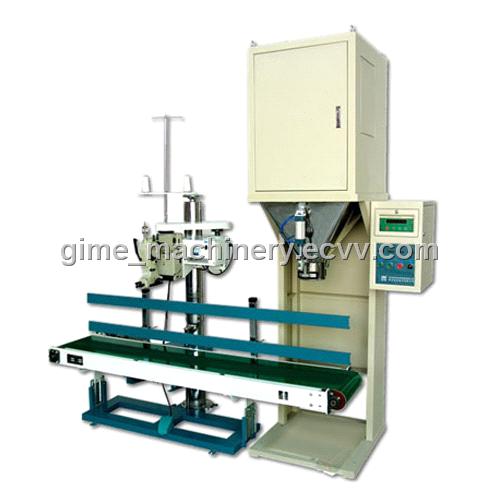

DCS-A Electronically Quantitative Weigher

Scope of application: The quantitative packaging of granules in food, fodder, chemical industry etc.
1、It has the advantage of high calculating precision, stable functioning, digital demonstration, simpler and more quickly kneading board operation, direct quota addition and subtraction determination.
2、The auto-adapted software has the function of controlling the parameter setup, the self-correcting of the fall height, deviation alarm and fault self-diagnostics etc.
3、Wide quantitative extent, high precision and a platform that can be raised and lowered makes it have more functions and efficiency higher.
4、Adopt the imported sensor and pneumatic implementation mechanism which makes the work reliable, the maintenance easy and no pollution.
5、The cabinet adopt advanced plastic-sprayed craft and component contacted with raw material all adopt imported stainless steel that can be used for a long period, for its high sanitation standard and anticorrosion.
6、Predetermined interface of the printer can print the production data, such as the quantity of package and total weight, etc.

Predetermined RS232 series connection interface can be used to communicate with the outside management system by data. These two technologies can make plant supervision easy.

Technology Parameter
Specification	DCS-1	DCS-5	DCS-25	DCS-50
Weighing Extent	0.2-1kg	1-5kg	5-25kg	15-50kg
Packaging error	0.2%F.S	0.2%F.S	0.1%F.S	0.1%F.S
Smallest Weight	2g	5g	10g	20g
grade of precision	(III)
Packaging speed	300-500bag/h	300-500bag/h	360-400bag/h	>=320bag
Power source Air source	220VAC 50HZ 0.4-0.8MPa
the apparent size	1725mmX　520mmX710mm	1890mmX　600mmX690mm	2534mmX　620mmX710mm	2534mmX　620mmX710mm
actuator	pneumatics	pneumatics	DCS-25	DCS-25
