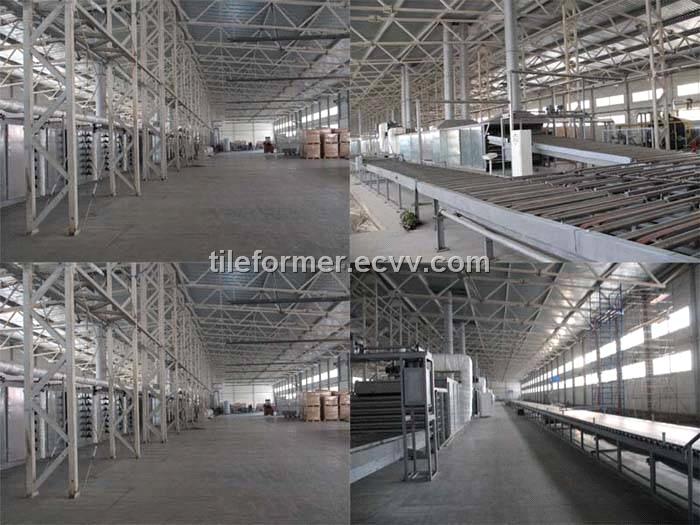

Gypsum Board Production Line

Gypsum board production line Description

    Equipment characters: Large-scale equipment miniaturization (small in land coverage), complicated craft simplified (easy to operate), expensive price cheap to take (small in investment).
    Product characters: Ordinary paper gypsum boards have light mass, fire-resistant, insulating against heat, insulating against sound, can automatically adjust the humidity in the room. Besides, the products have good processing characteristics: they can be nailed, sawn, planned, can be fastened or bond (and other binder)
    Its products meet national standards GB/T9775—1999(Equivalent to European standards)

Parts of Gypsum board equipmenta

① Raw material supply system	② Board making System
③ Conveyor System	④ Transferring System
⑤ Drying System	⑥ Finished products System

Gypsum board equipment type

Classification standards	Name
Drying methods	Hot Air/Hot Oil
Output	1 million M2----20 million M2
Fuel type	Coal/Gas/Heavy Oil

Gypsum board equipment technical parameters

Output m2/per year	Power	Water	Workshop area
1million	100KW	10T	80M*10M*4.5M
3million	160KW	30T	90M*10M*4.5M
6million	180KW	60T	190M*12M*4.5M
8million	240KW	80T	270M*10M*4.5M
10million	300KW	100T	300M*10M*4.5M
...	...	...	...
Power requirements：380V/3Ph/50Hz
