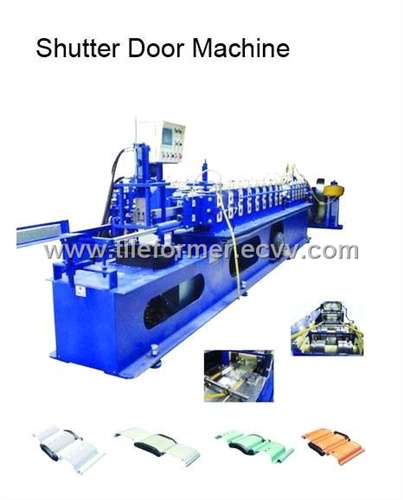

Rolling Shutter Forming Machine

Rolling Shutter Forming Machine

Rolling Shutter Forming Machine

  Prev Product Contact Now Next Product

Detailed Product Description



Description: This machine is designed for manufacturing high quality Shutter Door. This machine contains our experiences in 35 years and many times improvements by our engineers. In our service, we support the equipment which according to customers’ requirements and our most sincere recommends.
We design the new model which can joint two shutters without traditional clips. This solution not only save the cost for buying a door accessory, but also speed up the door construction. It can be designed to produce any profile which according to customers’ requirements. Customers can select to add the in-line punching holes device or not. Whole production line is driven by hydraulic system and controlled by PLC with touch screen.
We are not only offer customers a wonderful machine for making, but also the abundant experience, precision making, stable automatic manufacture by hydraulic power, hi-tech control system, and our enthusiasm.

Specifictions:
  • Thickness of Forming Sheet: 0.6 ~ 1.2 m/m.
  • Forming Speed: 12 ~ 16 M/min.
  • Roll Shaft Diameter: 40 mm Dia.
  • Hydraulic Motor: 7.5 HP ~ 10 HP
  • Roll stands: 10 ~ 12sets of roll in SK2-hard chrome coated.
  • Attached with cooling equipment.
  • Complete with uncoiler, hydraulic cutting device and including run-out table.
  • This machine is controlled by computer system with touch screen.

Features:
  1. Professional designing for manufactures shutter steel.
  2. Automatically continually manufactures high quality product with PLC.
  3. Easy operation: Directly Input the data on the touch screen.
  4. Customers decide the profile of products.
  5. Saving time and cost owing to high speed running with hydraulic system.
  6. One year warranty.
Composition of the equipment:
  1. Cold Roll Forming Machine (1 set)
  2. Manual Type Uncoiler ( 1set)
  3. Rear-Cutter (1 set)
  4. Pre-Cutter (Option)
  5. Coil Car (Option)
  6. Product Stacker (Option)
  7. Safety Guide (Option) – emergency stop wire, PVC cover…etc



Post Date:2/3/2009
Expiry Date:1/29/2010
