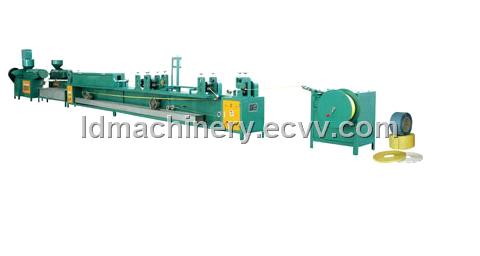

The screw of extruder is made of premium steel after fine machining and nitrogen hardening providing excellent wear resistance and longer service life. The complete system consists of nine machinery including Model 80 extruder, Model 60 extruder, stainless steel cooling sizing water tank, heating air oven, stretching-printing-embossing calendar, machine winder and hand winder. The recycled PP granules and used plastic tape are used as major raw materials. During the course of production, the granular plastic needs no drying under high temperatures or blending.
In the production of PP packing tape, cheap mineral powder can be used instead of expensive PP master batch fillers. The product quality will be raised while the production cost can be reduced substantially, so that the company gains higher profits.
Machine specifications:
1) Primary extruder screw: Φ80mm
2) Secondary extruder screw: Φ60mm
3) Primary extruder motor power: 5.5kW
4) Secondary extruder motor power: 3.0kW
5) Primary extruder heating power: 9.8kW
6) Secondary extruder heating power: 9.0kW
7) Heating air oven power: 4.8kW
8) Dehydration motor power: 0.18kW
9) Stretch electrical power: 2.2kW
10) Winder motor power: 0.75kW
11) Production capability: 40 - 60kg/h
12) Deviation degree: < 3.0%
13) Size (L x W x H): 140, 000 x 1, 600 x 1, 300mm
14) Weight: 2, 100kg
15) Outputted product: Machine and hand-use sandwich packaging tape.
Product specifications:
1) Machine-use tape:
A) Width: 9.0 - 19.0mm
B) Thickness: 0.6 - 1.2mm
2) Hand-use tape:
A) Width: 15.0 - 19.0mm
B) Thickness: 1.2 - 1.8mm
