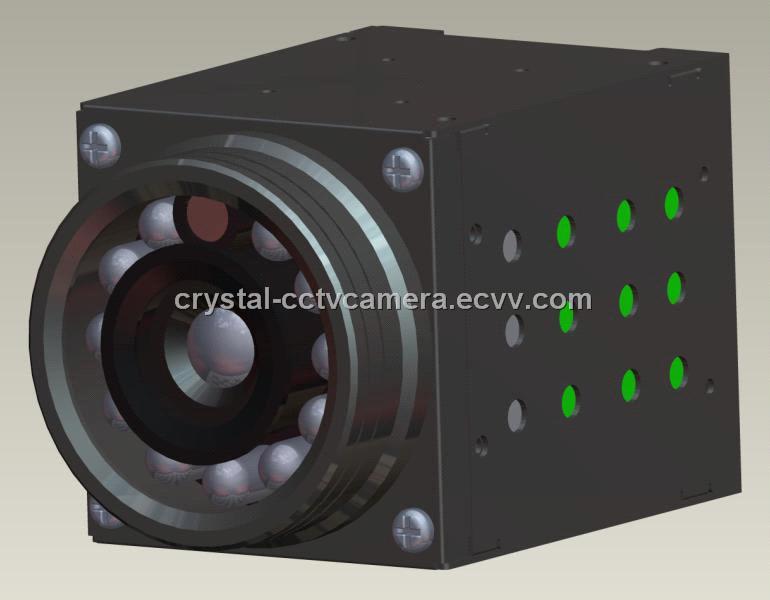

Sell Miniature Fixed Focus IR Camera Module

Detailed Product Description

Features
★ The CCD board employs wide range power supply design, which effectively avoid the possibility of damage caused by high voltage and improve the stability of camera performance.
★ The control circuit for IR LEDs employs constant current source design, which effectively prolong the service life of IR LEDs.
★ This miniature integrated camera module can be used in miniature, economy high speed dome.
Specifications
Model		SDC-101-IR Miniature Fixed Focus IR Camera Module
Image Sensor		1/4'' SONY Super HAD CCD
Effective Pixel		PAL: 500H×582V NTSC: 510H×492V
Horizontal Resolution		420 TVL
Scan Frequency		H: 15.625Hz V: 50Hz
S/N Ratio		> 48db (AGC OFF)
Electronic Shutter		1/50(1/60)s ~ 1/100,000s
White Balance		ATW
Min. Illumination		0 Lux (IR ON)
Lens	Focal Lengh	MTV 3.6mm (optional)	MTV 6mm (standard)	MTV 8mm (optional)
	Horizontal Angle of View	67°	44°	33°
	Vertical Angle of View	53°	33°	25°
IR Light Angle		11 pcs ? 5mm 60°	11 pcs ? 5mm 45°	11 pcs ? 5mm 30°
Best IR Distance		5m ~ 10m	5m ~ 15 m	10m ~ 15 m
IR Light Start Range		7Lux ~ 10Lux
IR Light Wavelength		850nm
Video Output		Composite video signal 1.0Vp-p/75 ohm /BNC
Operating Temperature		-10 degrees celsius~ +50 degrees celcius
Power Supply		DC12V/ 1000mA
Power Consumption		2.6W
Weight
Dimension		61mm×41mm
