Specifications:
1、Maximum oscillating power: 15KVA
2、Maximum input power: 7KW
3、Oscilating frequency: 30-100KHZ
4、Input voltage:220V, single phase, 50 or 60HZ
5、cooling water: 0.2Mpa, 2～5L/min ,Water temperature: <40oC
6、duty cycle: 80%
7、Timer of the HF-15A and HF-15AB model: heat time、retain time、cool time: 1-99second
8、cable length of the separated model: 2meters
9、weight and size
|
Model |
N.W/G.W kg |
SIZE LxWxH mm |
Packing size LxWxH mm |
|

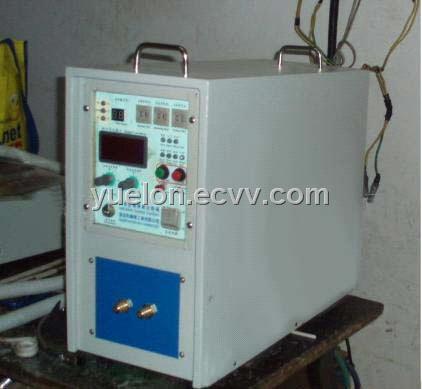

HF-15A |
20kg/25kg |
460x200x440mm |
560x300x540mm |
|
HF-15AB controller |
14kg/19kg |
460x200x440mm |
560x300x540mm |
|
HF-15AB transformer |
11kg/16kg |
310x190x330mm |
410x290x430mm |
Main characteristics:
1、MOSFET and inverting technologies of first generation been used;
2、Simple structure and light weight;
3、Simple to operate, a few minutes is enough to learn it;
4、Simple to install, installation can be done by unprofessional person very easily;
5、Advantages of the model with timer: the power and the operating time of the heating period and
the retain period can be preset respectively, to realize a simple heating curve, thie model is suggested
to use for batch production to improve the repeatability;
6、The separated models are designed to fit the dirty surrounding of some cases.
Application:
Brazing: It can be used for the brazing of various hardware cutting tools, diamond tools including diamond circular saw from diameter 300-2500mm, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit etc.
HF-15A/AB model, suitable to used for the brazing of circular saw and other tools, usually 9 to 15 seconds is needed to braze one diamond blade.
Heat treatment: Heat treatment of small parts.
Etc.
