Detailed Product Description
Main specifications:

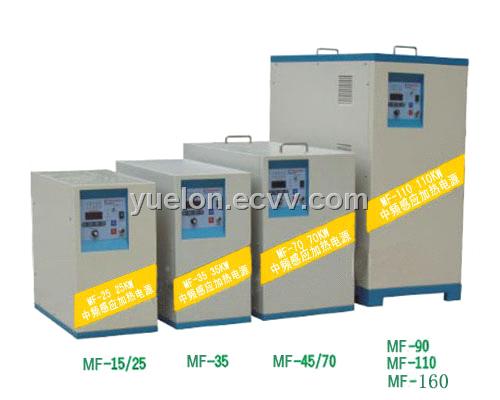

Model Input power Frequency output voltage input voltage Duty cycle
MF-15 15KW 1-20KHZ 70-550V 380V 3phases 50or 60HZ 100%
MF-25 25KW 1-20KHZ 70-550V 380V 3phases 50or 60HZ 100%
MF-35 35KW 1-20KHZ 70-550V 380V 3phases 50or 60HZ 100%
MF-45 45KW 1-20KHZ 70-550V 380V 3phases 50or 60HZ 100%
MF-70 70KW 1-20KHZ 70-550V 380V 3phases 50or 60HZ 100%
MF-90 90KW 1-20KHZ 70-550V 380V 3phases 50or 60HZ 100%
MF-110 110KW 1-20KHZ 70-550V 380V 3phases 50or 60HZ 100%
MF-160 160KW 1-20KHZ 70-550V 380V 3phases 50or 60HZ 100%
Features:
1. IGBT module and soft switching inverting technologies are used in the production of the generator, higher reliability can be achieved;
2. Small and portable , compared with SCR controlled machine, only 1/10 working space is needed;
3. High efficiency to save energy, high efficiency and power factor can be maintained;
4. The generator is adaptable in a large frequency range from 1-20KHZ, installation can be done very easily according to our manual;
5. 100% duty cycle , continuous working ability at maximum power;
6. Constant power or constant voltage control mode;
7. Display of output power, output frequency, and output voltage;
8. The timer function: heating time and retaining time: 0.1~99.9second.
