Main specification:

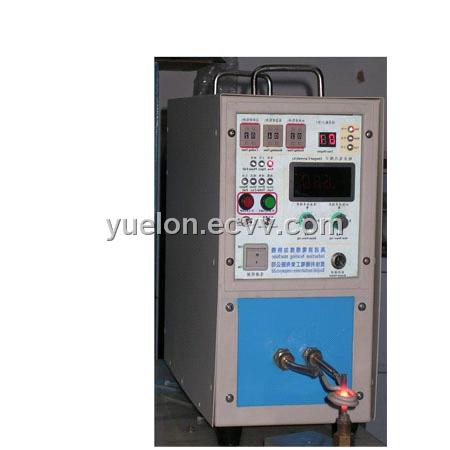

1. Model: UF-04A
2. Maximum input power: 4KW
3. Oscillatging frequency: 100-250KHZ
4. Input voltage: 220V, single phase, 50HZ or 60HZ
5. Maximum input current: 15A
6. Duty cycle: 80%
7. Cooling water desire: 2L/min 0.2Mpa
8. Water temperature protection point: <45oC
9. Auto heating time, retaining time: 0.1-99.9Sec.
10. Weight and size:
|
Model |
N.W./ G.W.(kg) |
Size (L xW xH) |
packing size |
|
UF-04A |
18kg/23kg |
460x200x440mm |
560x300x540mm |
Features:
1. MOSFET and inverting technologies of first generation been used;
2. Oscillating frequency can be high to 250KHZ, fitted for rapid heating of tiny metal parts;
3. Simple structure and light weight;
4. Simple to operate, a few minutes is enough to learn it;
5. Simple to install , installation can be done by unprofessional person very easily;
6. Advantages of the model UF-04A with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
Application recommended-----brazing of the carbide blades of the circular saw
advantages over resistance brazing:
1. Quick brazing, 1-5seconds for one blades
2. Good repeatability for each blade;
3. quick and even heating, preventing blade breaking caused by partial heating;
Effective brazing for high standard and high hardness blade sections , which is impossible for resistance brazing.
