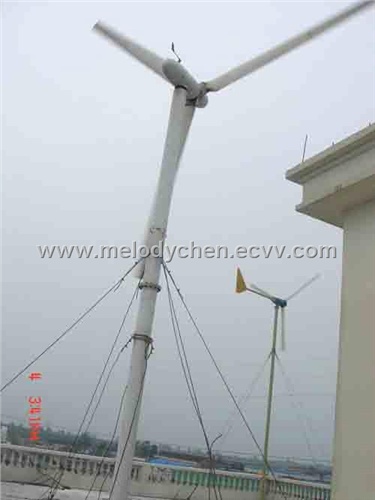

Horizontal Wind Turbine(3KW)
FD5.0-3000-16 (3000W)
Type: 3 Blade Upwind
Rotor Diameter: 5.0 m
Start-up Wind Speed: 2.5 m/s (5.6 mph)
Cut-in Wind Speed: 3 m/s (6.7 mph)
Rated Wind Speed: 10m/s (22.4mph)
Rated Power: 3000 Watts
Maximum Power: ~ 4000 Watts
Cut-Out Wind Speed: 15m/s(33.5mph)
Timing manner: automatically adjust the windward angle
Overspeed Protection: AutoFurl
Temperature Range: -40 to +60 Deg. C (-40 to +140 Deg. F)
Generator: Permanent Magnet Alternator
Output Form: 240 VDC Nominal
