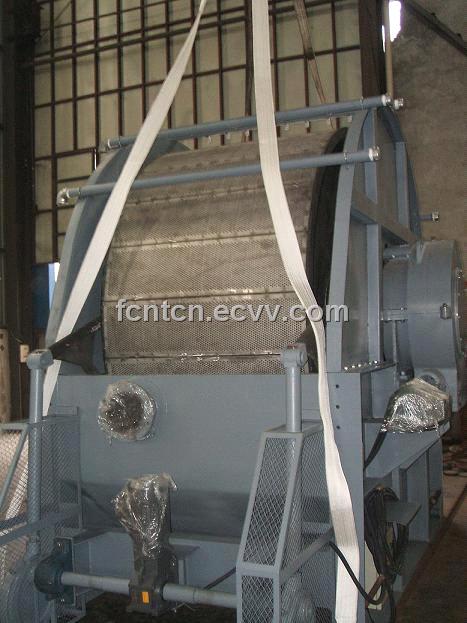

vacuum filter

This vacuum filtration machinery are widely used in the fields of chemical, pharmacy, food and wasted water treatment.

The MOC is carbon steel, and the surface contacted with treated material is covered with rubber. So this machine can be used to handle corrosive liquid.

And we can show you parameters of G10/2.6-x type:
Filtration area: 10m²
Drum diameter: 2600mm
Drum length: 1300mm
Immersed angle: 90-120°
Rotation speed of drum: 0.2-1.0rpm
Drum driving motor power: 4.0kW
Mixing drive motor power: 2.2kW
Weight: 6557kg
Outer dimension: 3971mm*2785mm*3217mm
